DCD740B

DEWALT® 20V MAX* 3/8-in. (9.5mm) Right Angle Drill/Driver (Tool Only)

A DEWALT 20V Max cordless right angle drill with a yellow and black ergonomic handle, shown standing upright against a white background.

Reviews

Product details

Complete a variety of applications with the 20V MAX* 3/8 in. Right-Angle Drill/Driver. Compatible with all 20V MAX* batteries and chargers, this tool features a multi-grip trigger that provides comfort and convenience in tight spaces. Battery & Charger Sold Separately

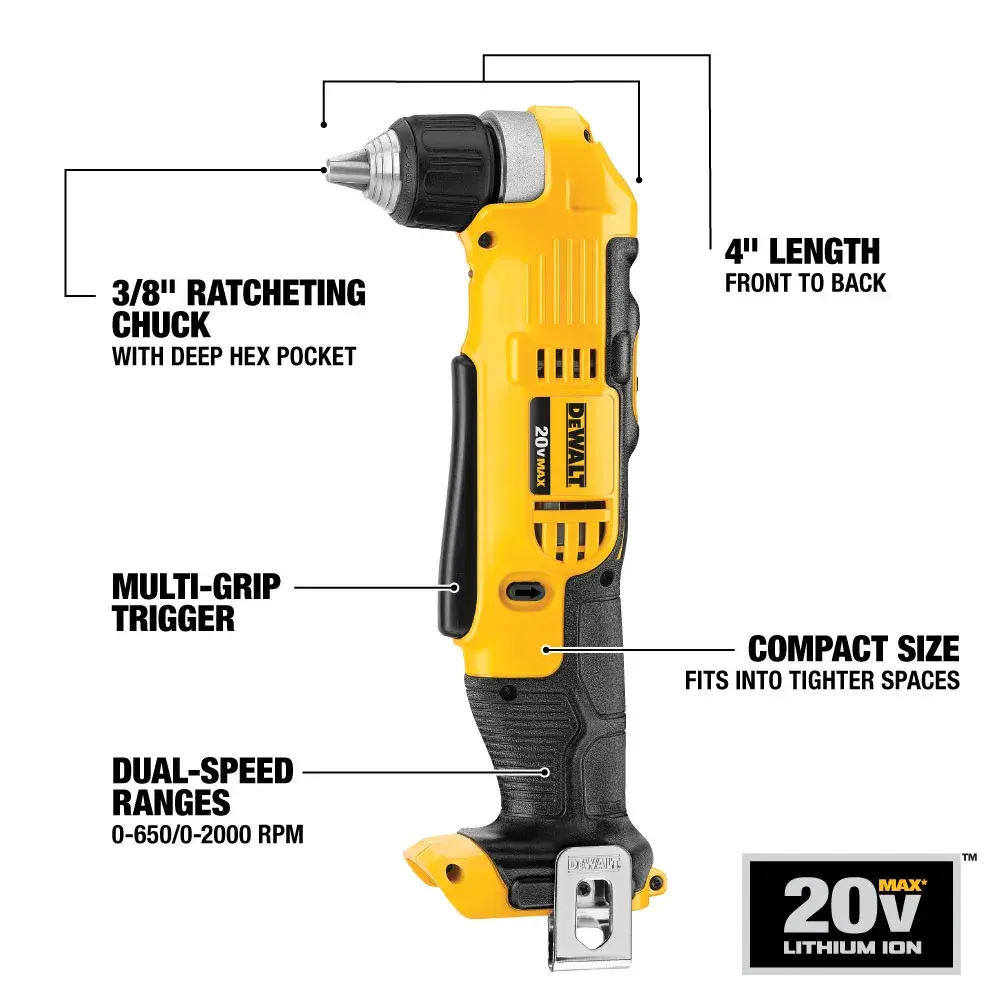

  • Dual speed ranges (0-650/0-2000) RPM for increased user flexibility providing a wide range of applications

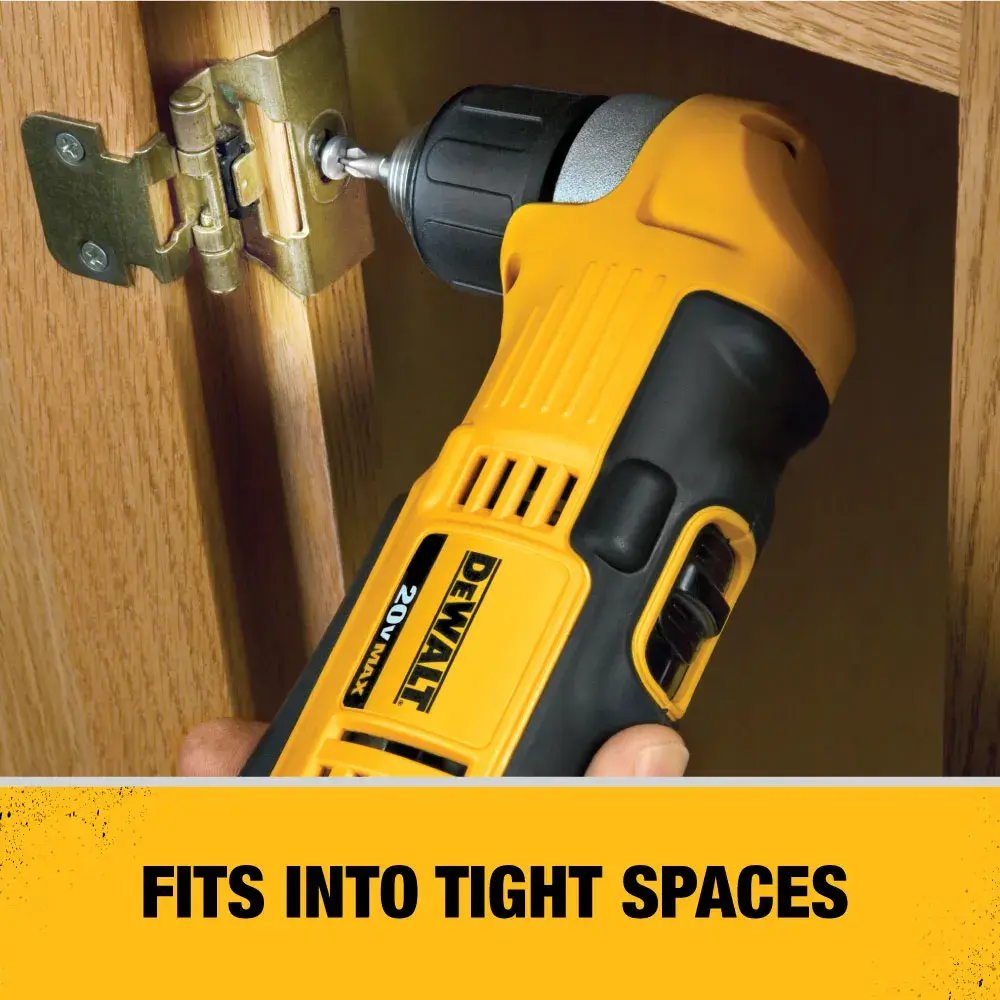

  • Compact front to back length (4.0 ") allowing users to fit into hard to reach spaces

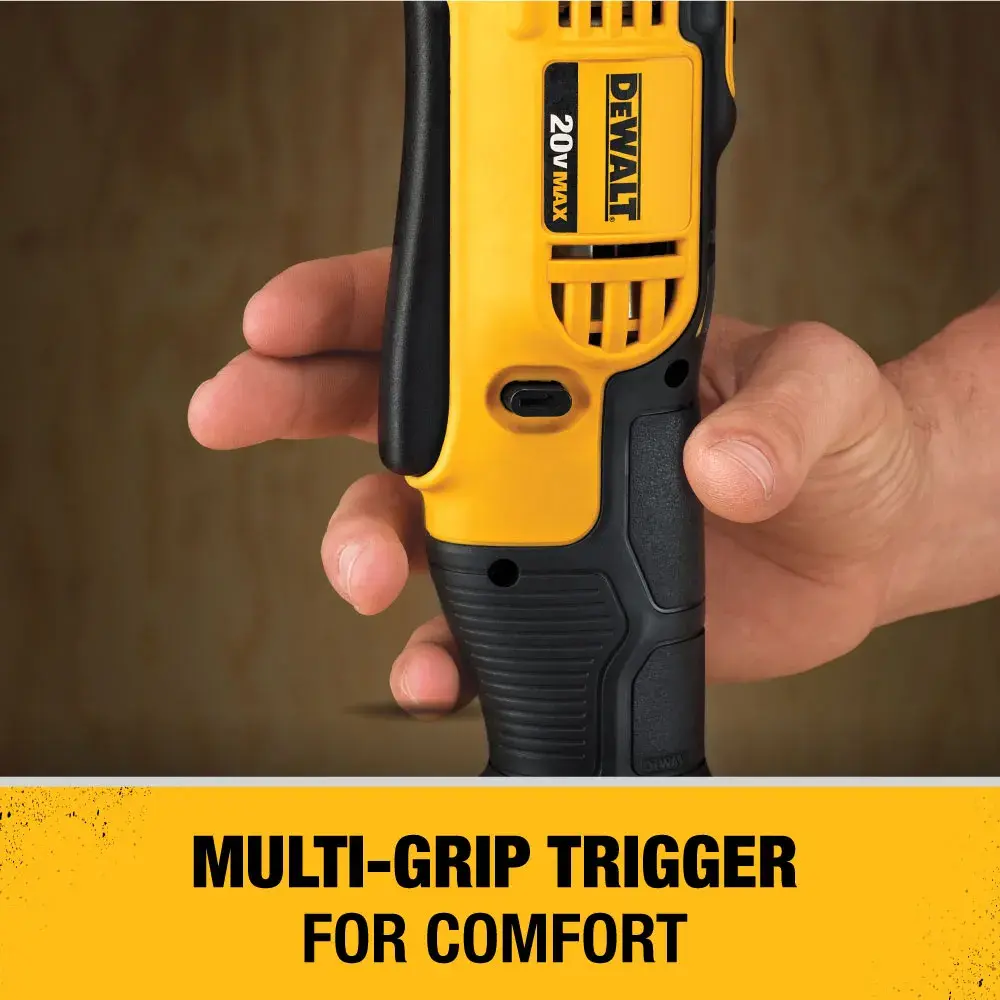

  • Multi-grip trigger provides comfort and convenience, allowing the user to get into tighter spaces while still having access to the trigger

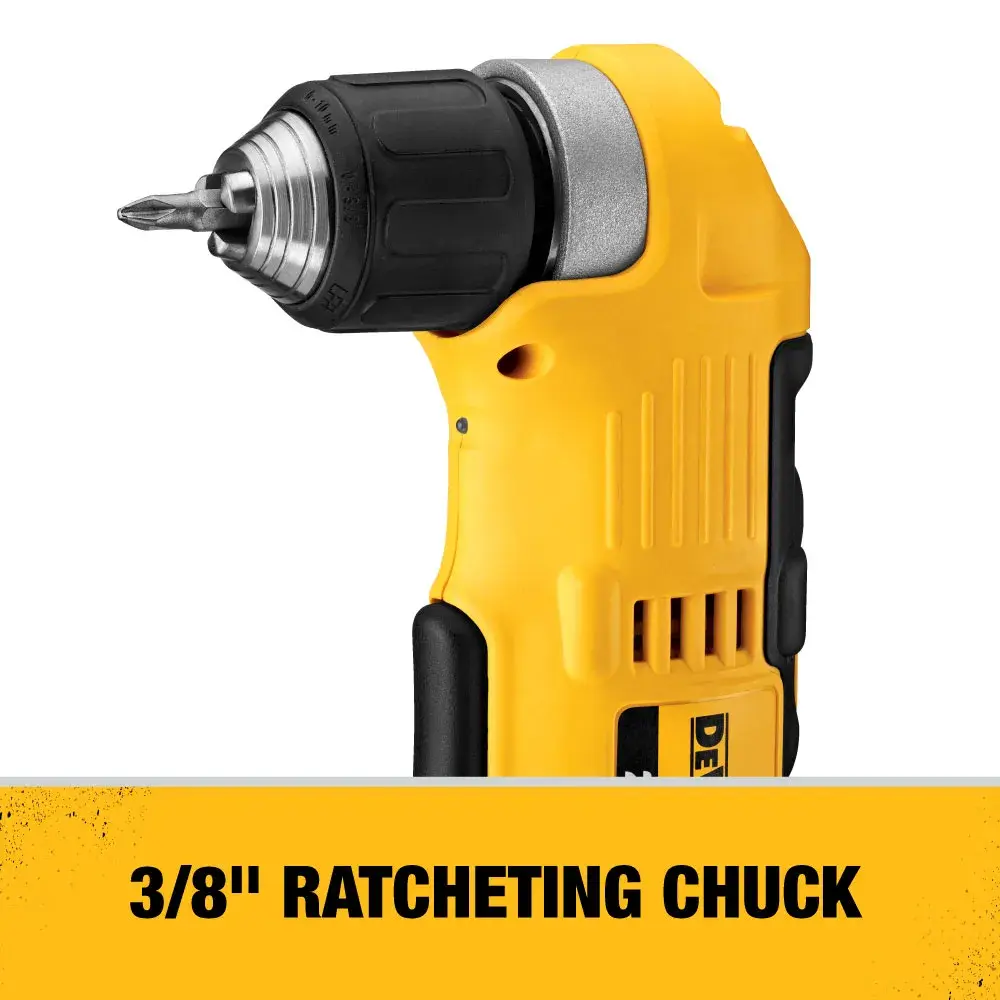

  • 3/8 " ratcheting chuck with deep hex pocket allows 2 " (50 mm) hex bit to be fully inserted for getting into tight spaces.

Product Type
Right Angle Drill
Voltage
20V
Cordless or Corded
Cordless
Power Source
Battery
Motor Type
Brushed

  • (1) DCD740 3/8 in. Right angle drill/driver
  • (1) Belt hook
  • (1) 2 in. PHILLIPS Tip bit

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

* * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Downloads and manuals

Instruction Manual, Type 1
N381681_DCD740.pdf
PDF

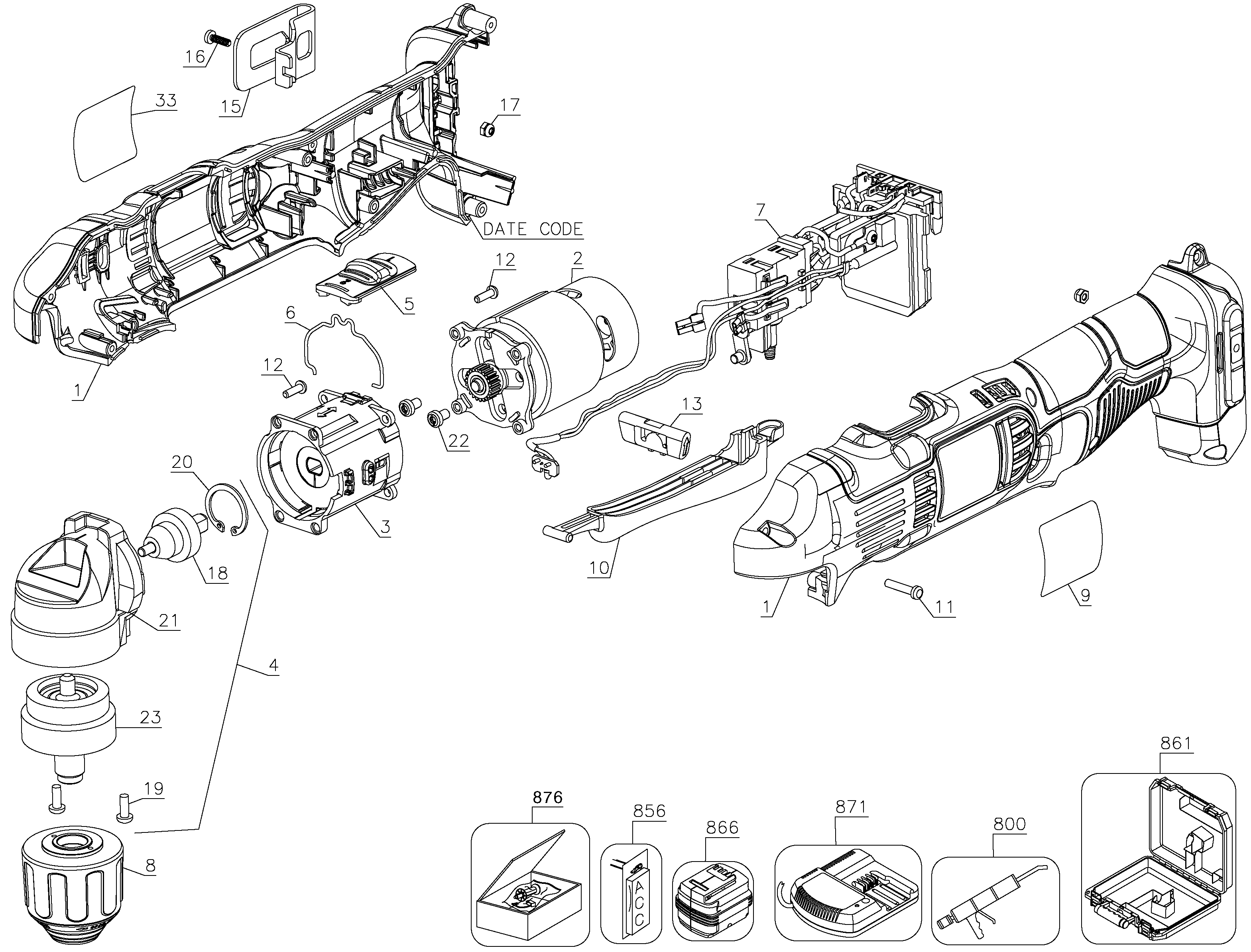

Exploded Diagram, Type 1
GIF
