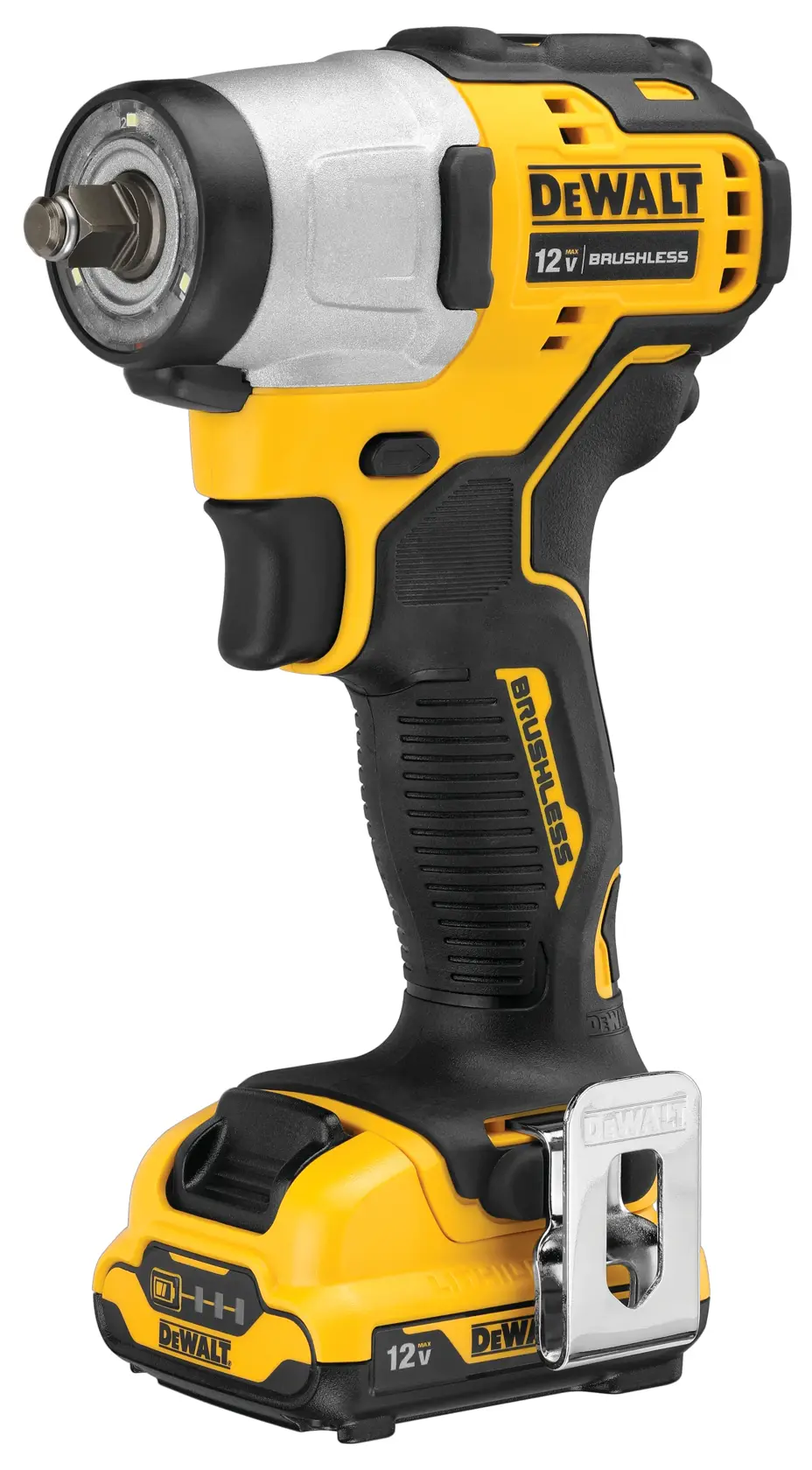

DEWALT® Xtreme™ 12V MAX* Cordless Brushless 3/8-in. (9.5mm) Impact Wrench with (2) 2.0 Ah Batteries with Charger
Reviews
Explore More Options
Current Option
Product details

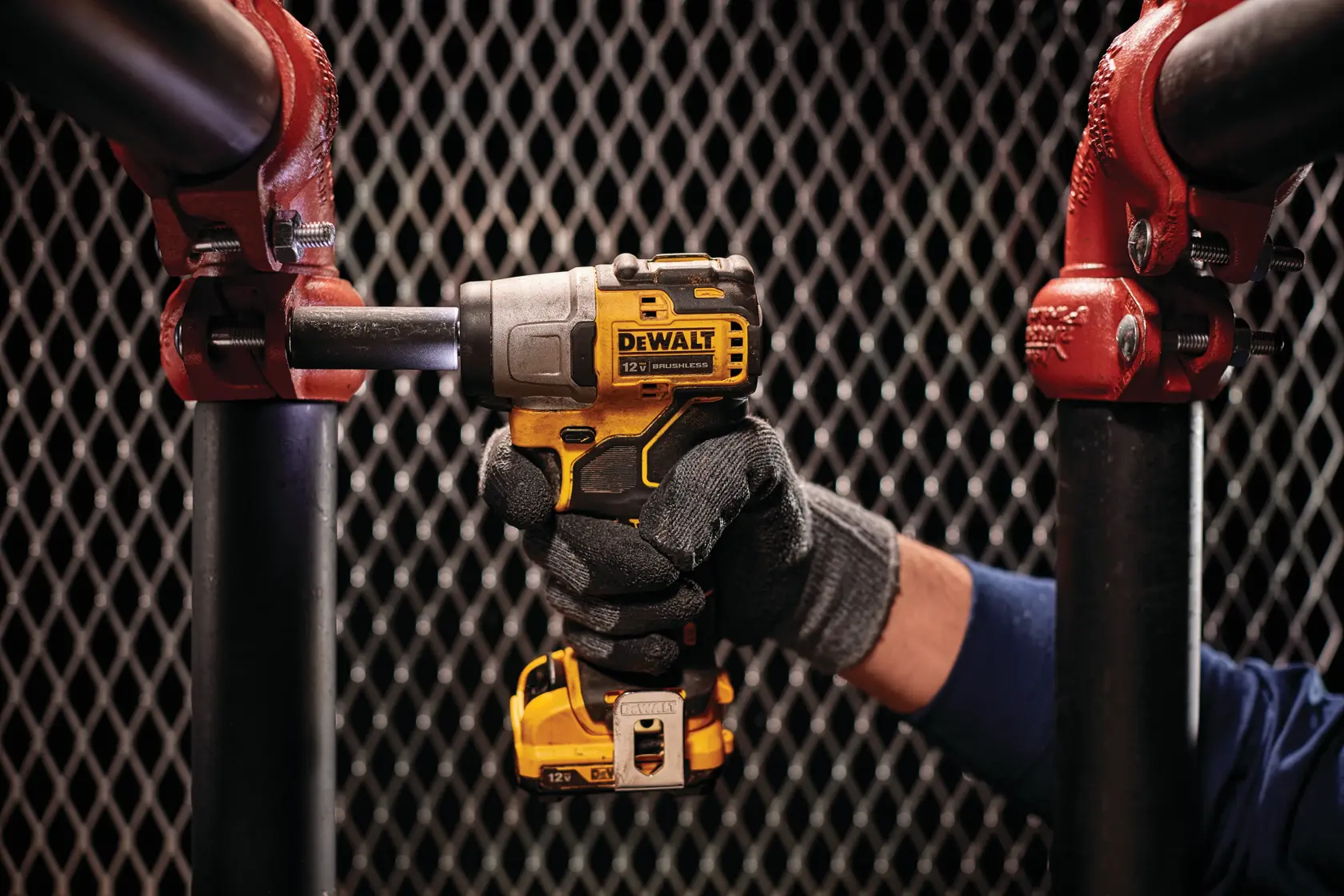

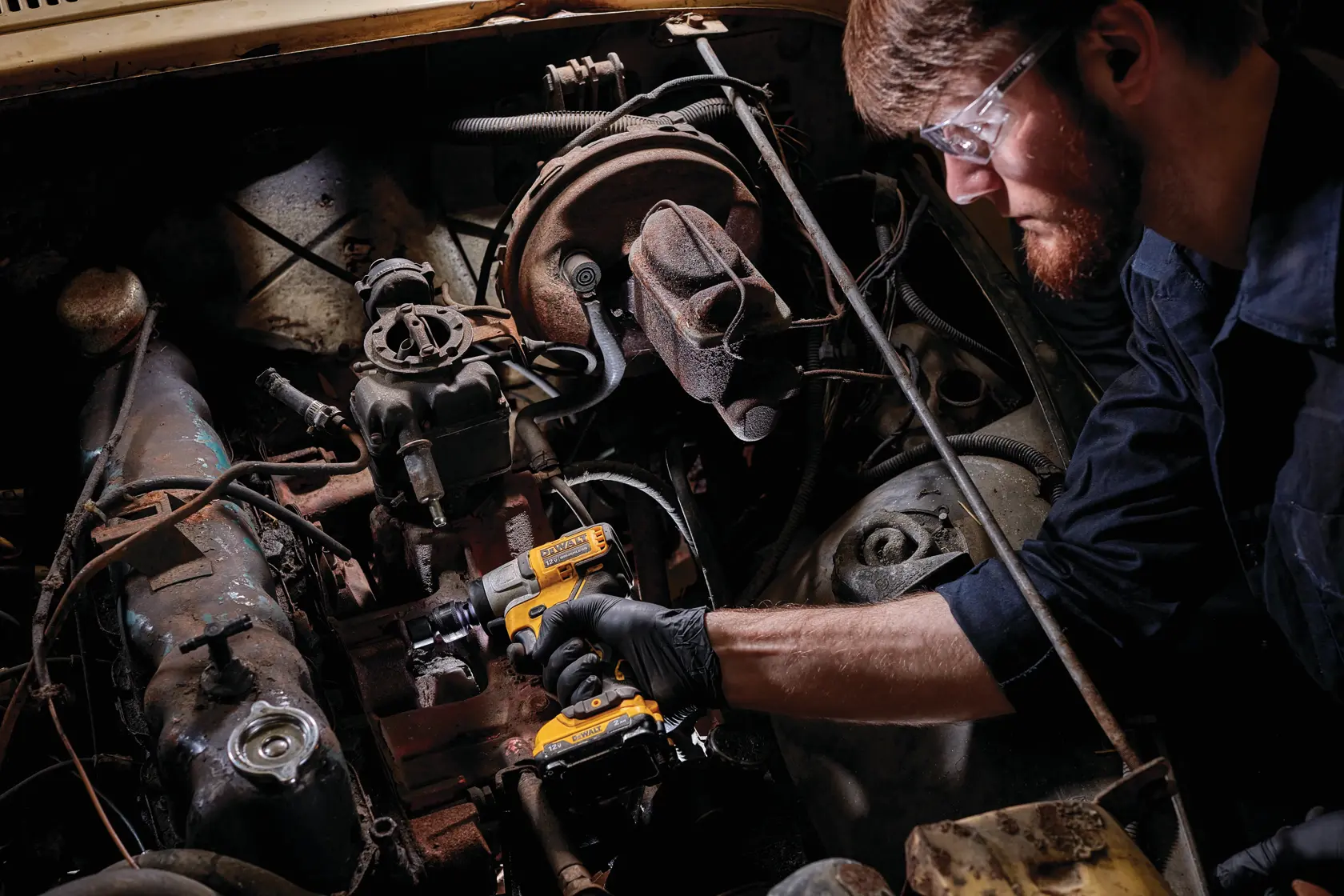

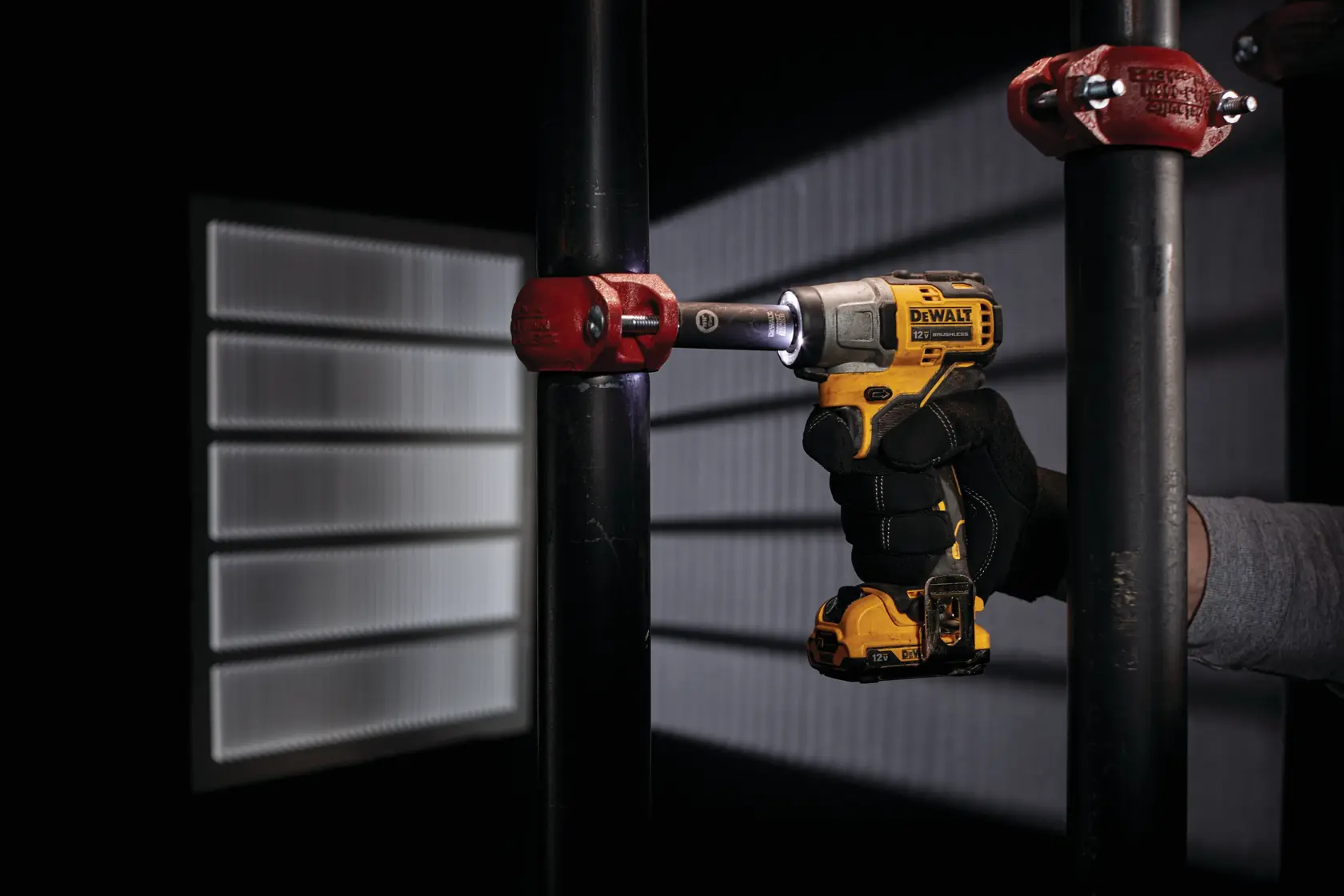

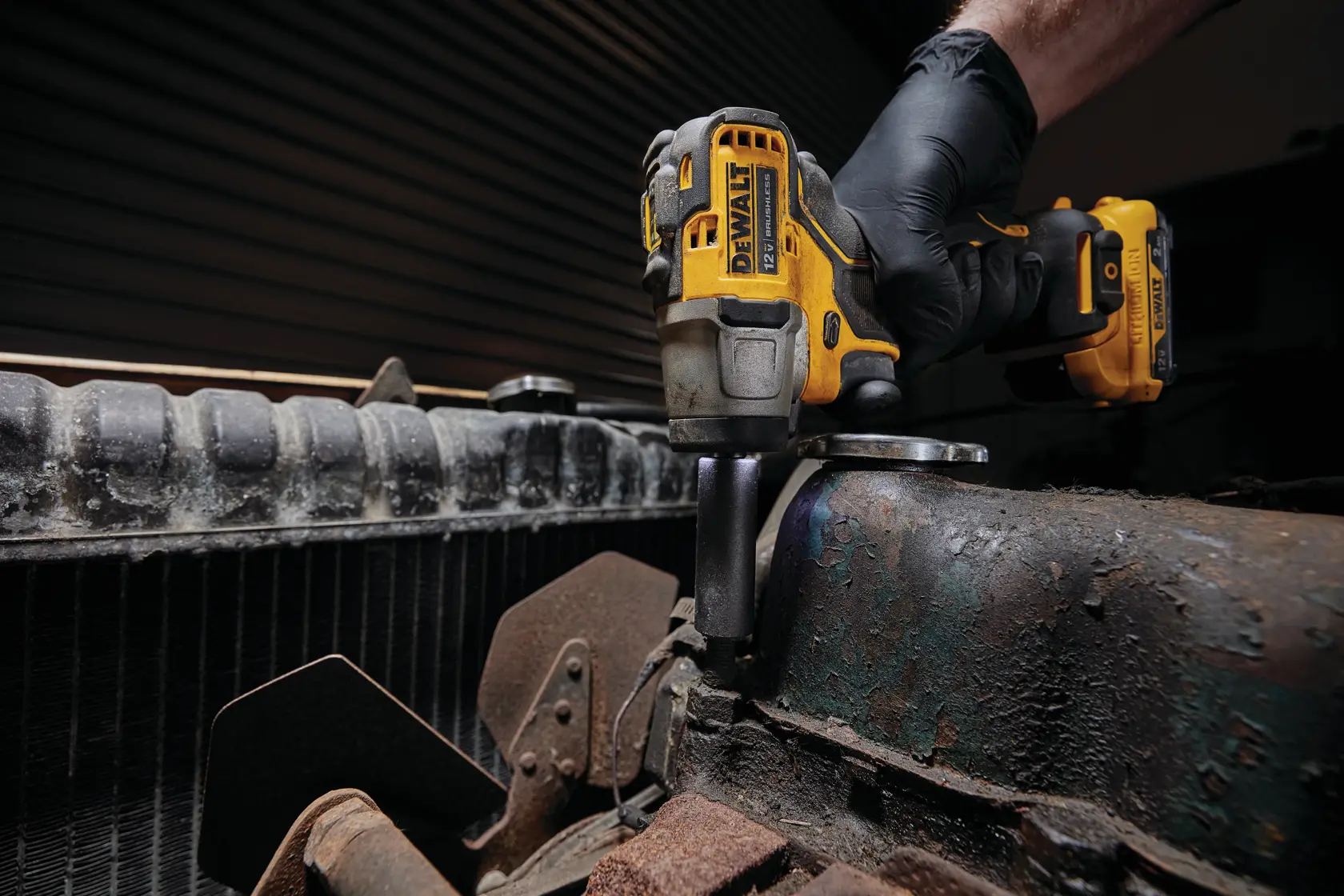

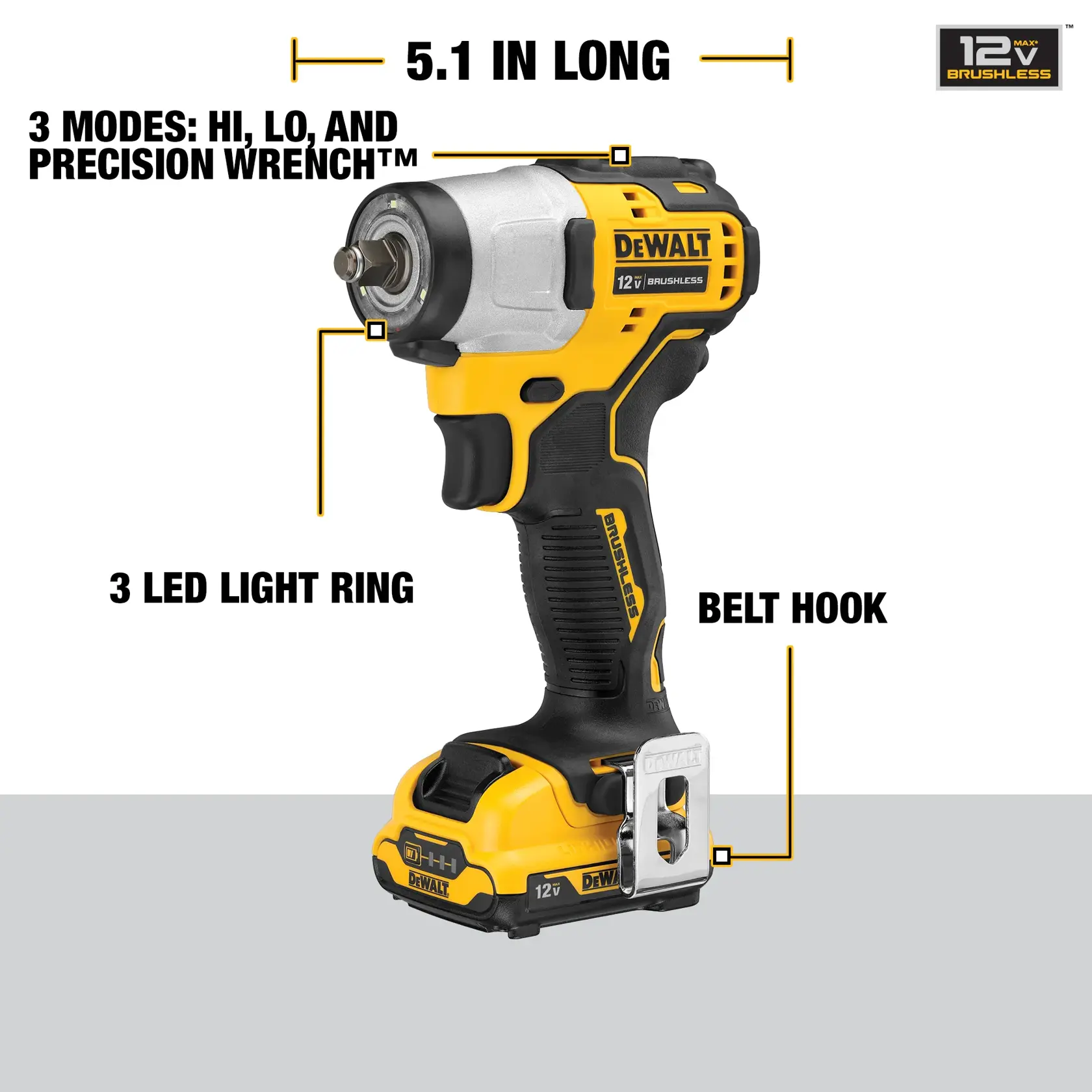

This cordless kit includes one 3/8 in. impact wrench, two 12V MAX* 2Ah batteries, charger, and tool bag. This cordless impact wrench is designed for hard to reach applications requiring tightening or loosening of nuts and bolts. At only 5.1 in. long it is packed to perform with 1,500 in-lbs of fastening torque and 2,400 in-lbs of breakaway torque. It also features 3 LED lights positioned on the nosecone to illuminate work areas. This impact wrench is equipped with a 3-mode switch with Precision Wrench to help prevent overtightening and run off.
- DCF902 12v MAX* brushless 3/8 in. Impact wrench has 30% more torque*
- DCF902 12v MAX* brushless 3/8 in. Impact wrench is 30% shorter*
- Brushless motor for maximum runtime and durability
- 3/8 in. Square drive
- 3 mode settings including precision wrenchtrade for control in a variety of applications

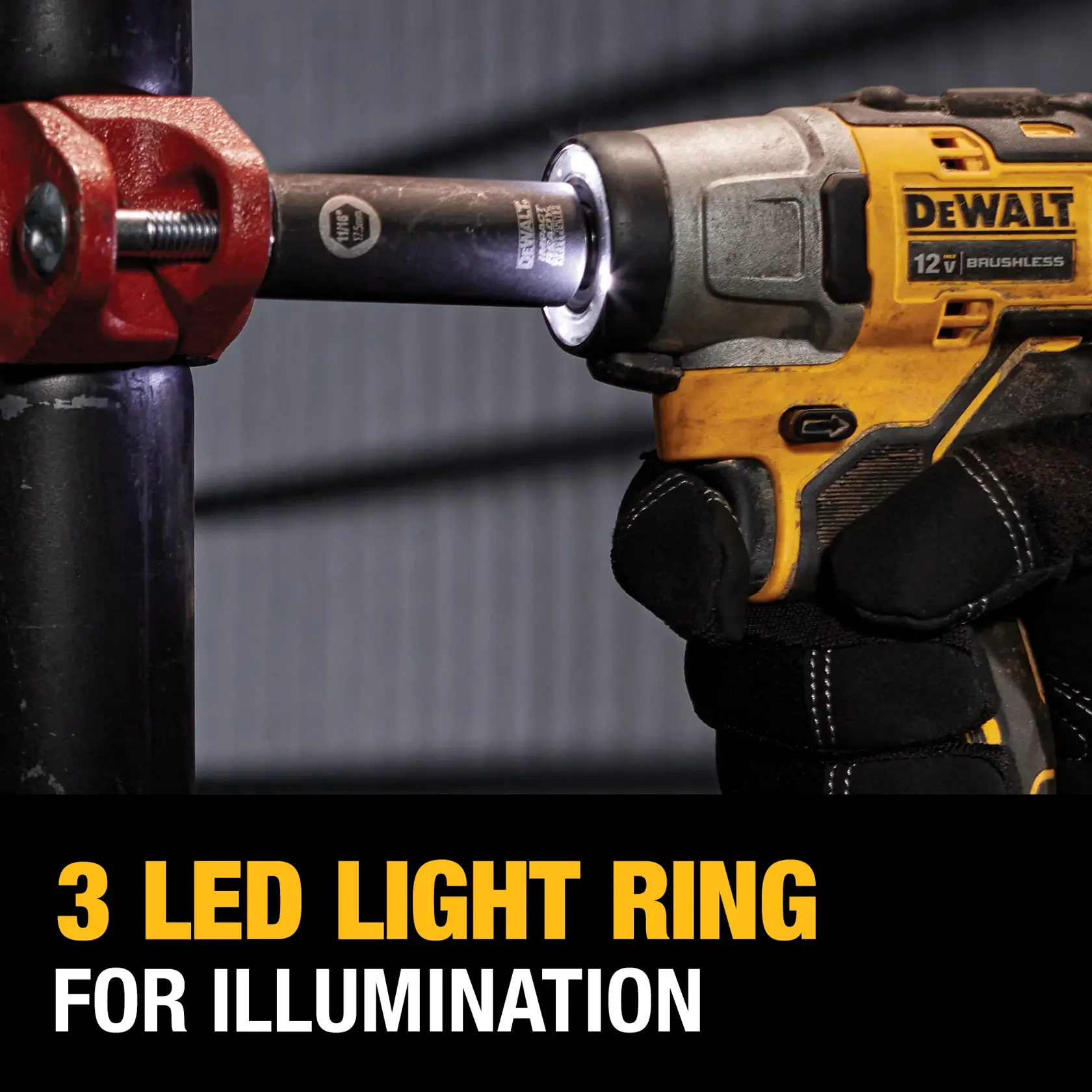

- 3 LED lights for illumination onto work surface
- Lightweight at 1.73 lbs (TOOL ONLY)
- Kitted with 2.0 Ah batteries with state of charge indicator
Product Type
Impact Wrench
Voltage
12V
Cordless or Corded
Cordless
Power Source
Cordless
Motor Type
Brushless
- (2) DCB122 - 12V MAX* Batteries with state of charge indicator
- (1) 12V MAX* - 20V MAX" Charger
- (1) Belt clip
- (1) Kit bag

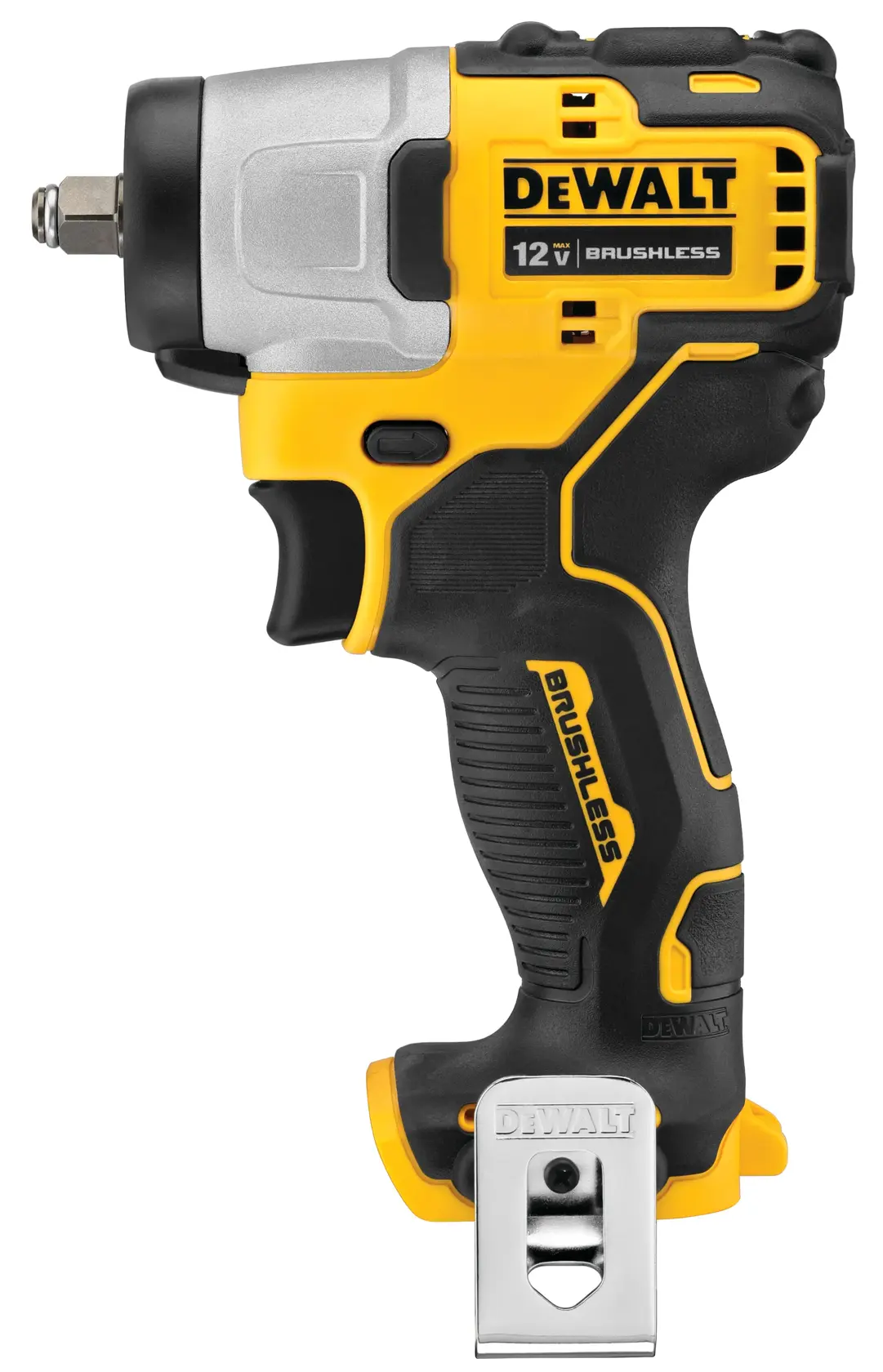

- (1) DCF902B - 12V MAX* Brushless 3/8 in. impact wrench
- 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
Our DEWALT® Customer Service team is available 24 hours a day, 7 days a week. Contact us via chat, form, or phone.
Customer Support* † Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. ** DCF902 using DCB122 2Ah battery vs. DCF813 using DCB120 1.3 Ah battery. * Maximum initial battery voltage (measured without a workload) is 12 volts. Nominal voltage is 10.8.
Downloads and manuals
Instruction Manual, Type 1
N682902_DCF801_DCF902.pdf
PDF
Instruction Manual, Type 1
NA494556_DCF801_DCF902_T1_NA.pdf
PDF

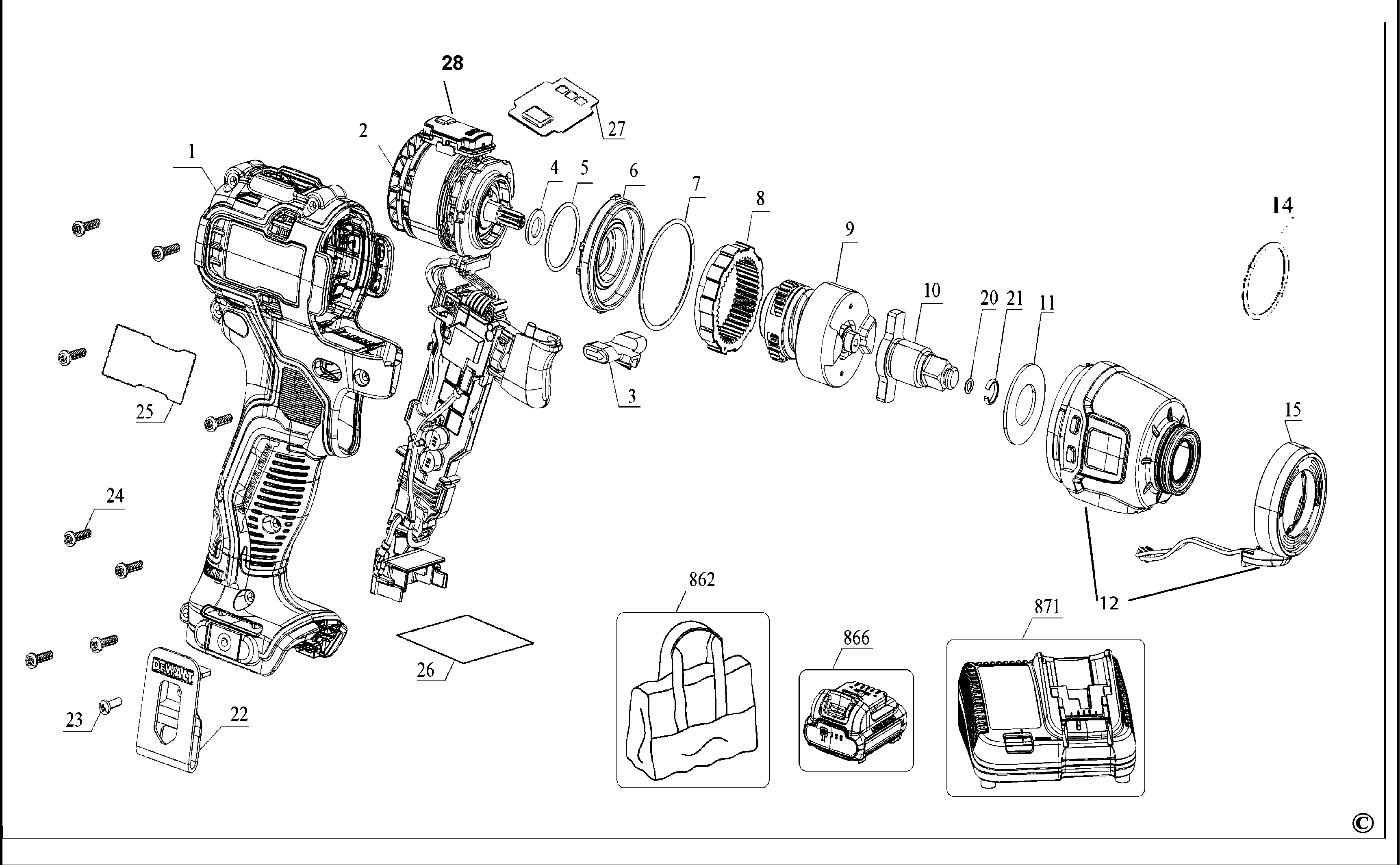

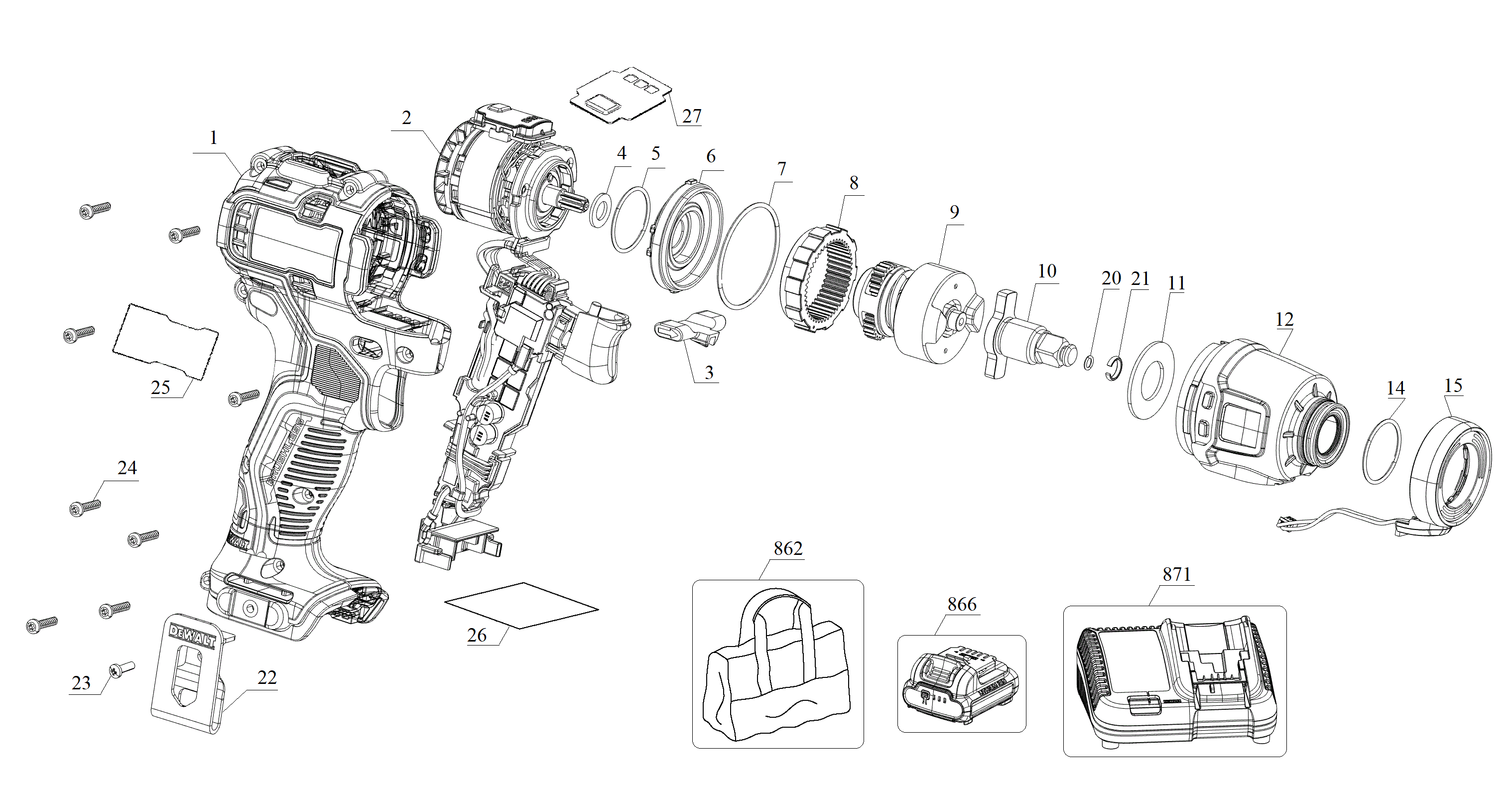

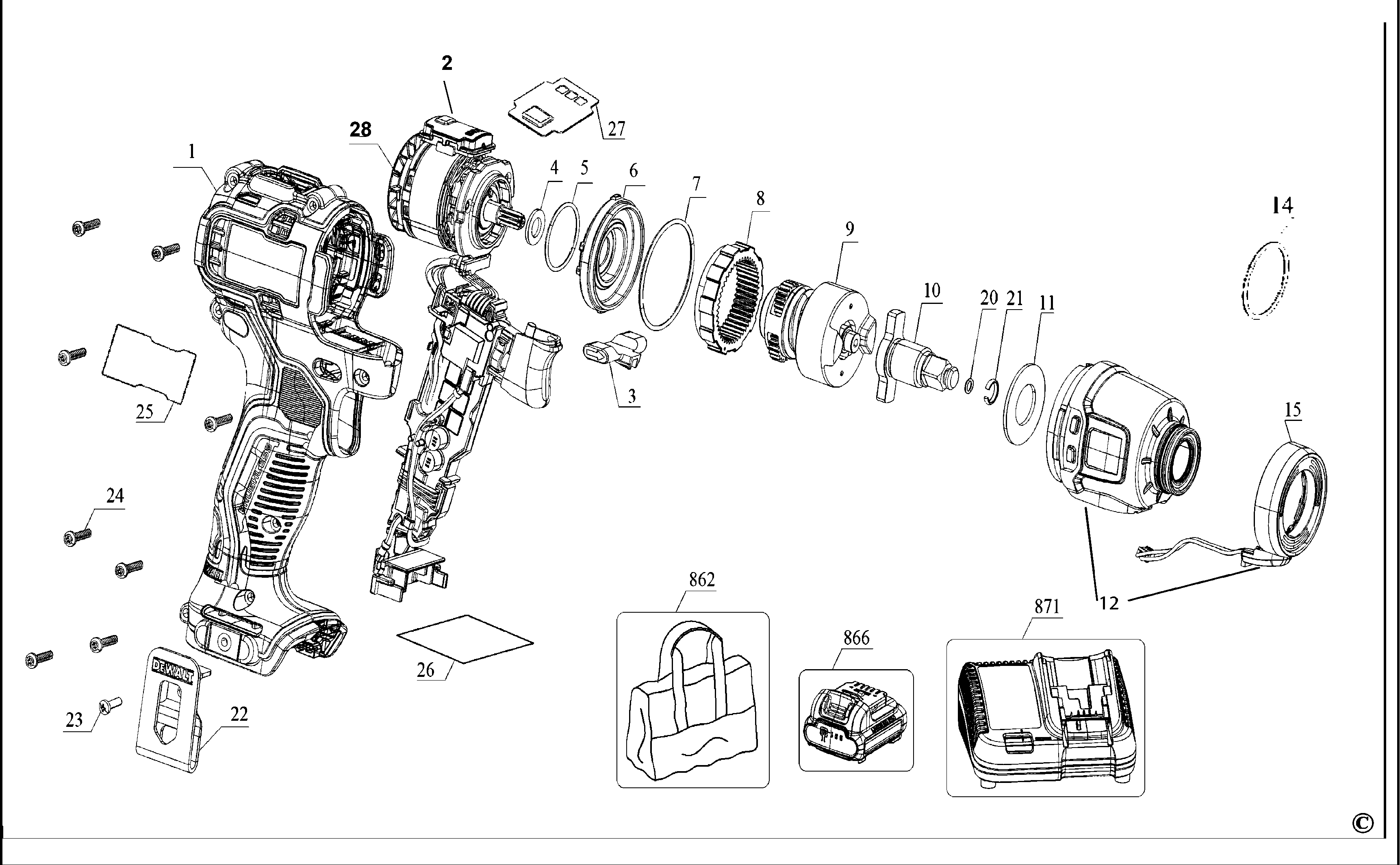

Exploded Diagram, Type 1
GIF
Exploded Diagram, Type 1
GIF
Exploded Diagram, Type 1
GIF
Exploded Diagram, Type 1
GIF
