DCG413B

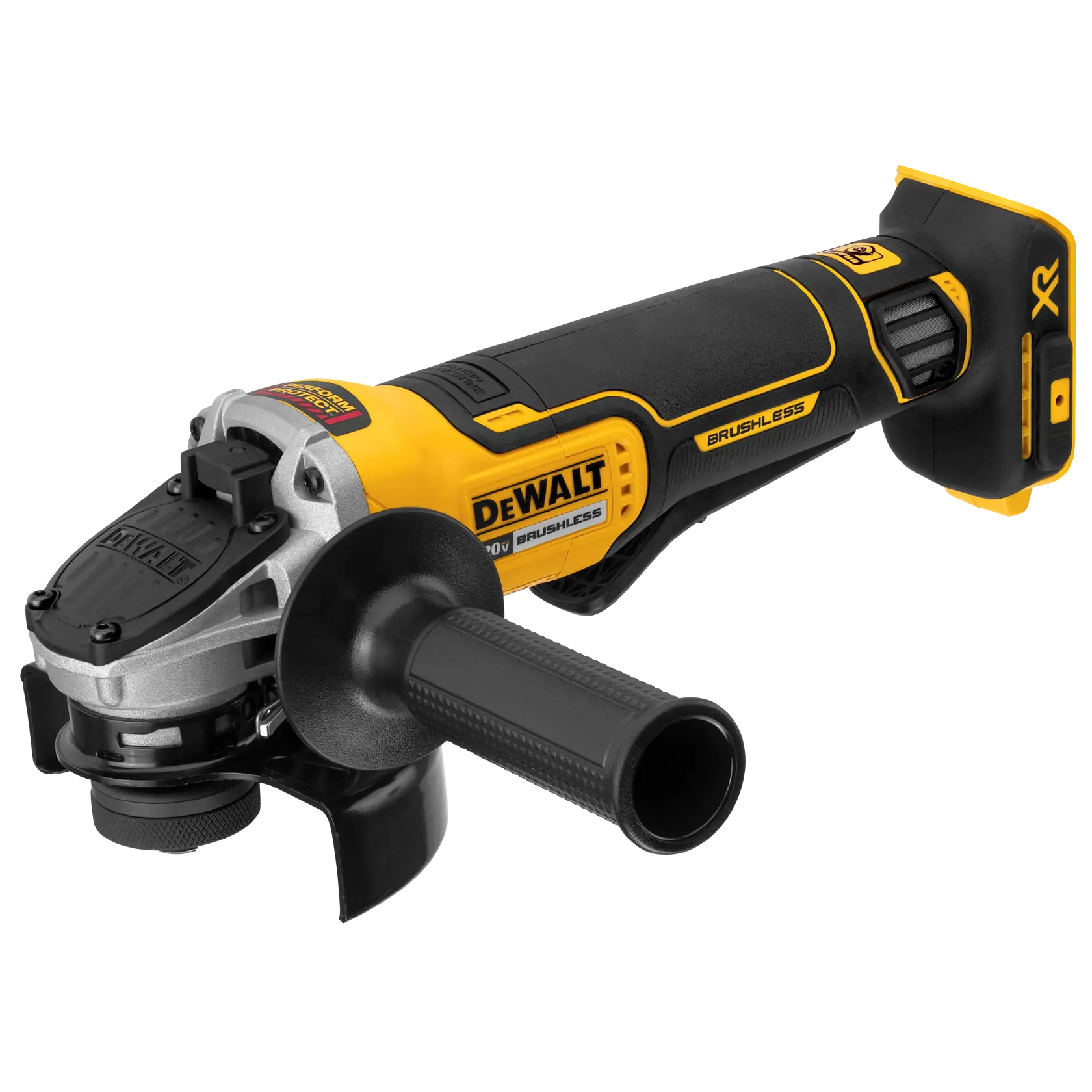

DEWALT® 20V MAX* XR® 4-1/2-in. (114mm) Paddle Switch Small Angle Grinder with Kickback Brake (Tool Only)

A DEWALT 20V brushless cordless angle grinder with a yellow and black design, shown on a white background.

Reviews

Explore More Options

Current Option

Product details

Take on challenging grinding applications with the 20V MAX* XR® 4.5 in. Paddle Switch Small Angle Grinder with KICKBACK BRAKE. E-SWITCH PROTECTION helps provide protection in event of a power outage or other unexpected shut down. Featuring a powerful brushless motor, this grinder is a part of the expansive 20V MAX* system. Battery & Charger Sold Separately

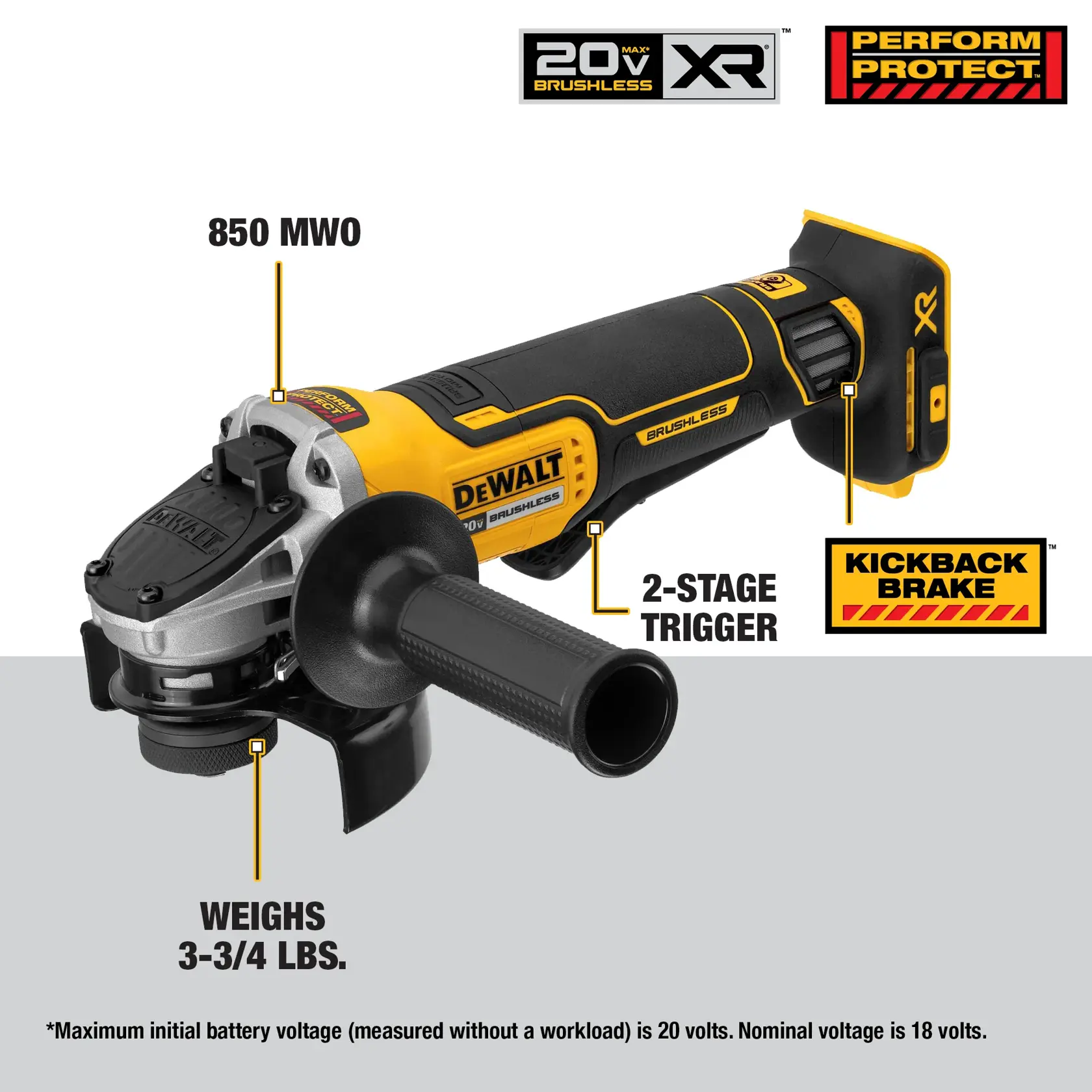

  • Two stage trigger requires two actions to activate tool.
  • Features E-switch Protection - When the ON/OFF trigger switch has a no-volt release function. In the event of a power outage or Other unexpected shut down, the trigger switch will need to be cycled (turned off and then on) to restart tool.
  • Brushless motor requires no brush changes.
  • Brake stops wheel in 2 seconds or less on average
  • Kickback brake engages when a pinch, stall, or bind-up event is sensed and the electronic brake engages with maximum force to quickly stop the wheel, reduce the movement of the grinder and shut the grinder off.

Product Type
Angle Grinder
Voltage
20V
Cordless or Corded
Cordless
Power Source
Battery
Tool Only
Yes

  • (1) Side handle
  • (1) Hex key
  • (1) Inner and outer flange
  • (1) 4.5 in. Type 27 guard
  • (1) Grinder

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

* * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Downloads and manuals

Instruction Manual, Type 1
N505670_DCG413.pdf
PDF
Instruction Manual, Type 1
NA533095_DCG413_T1_NA.pdf
PDF

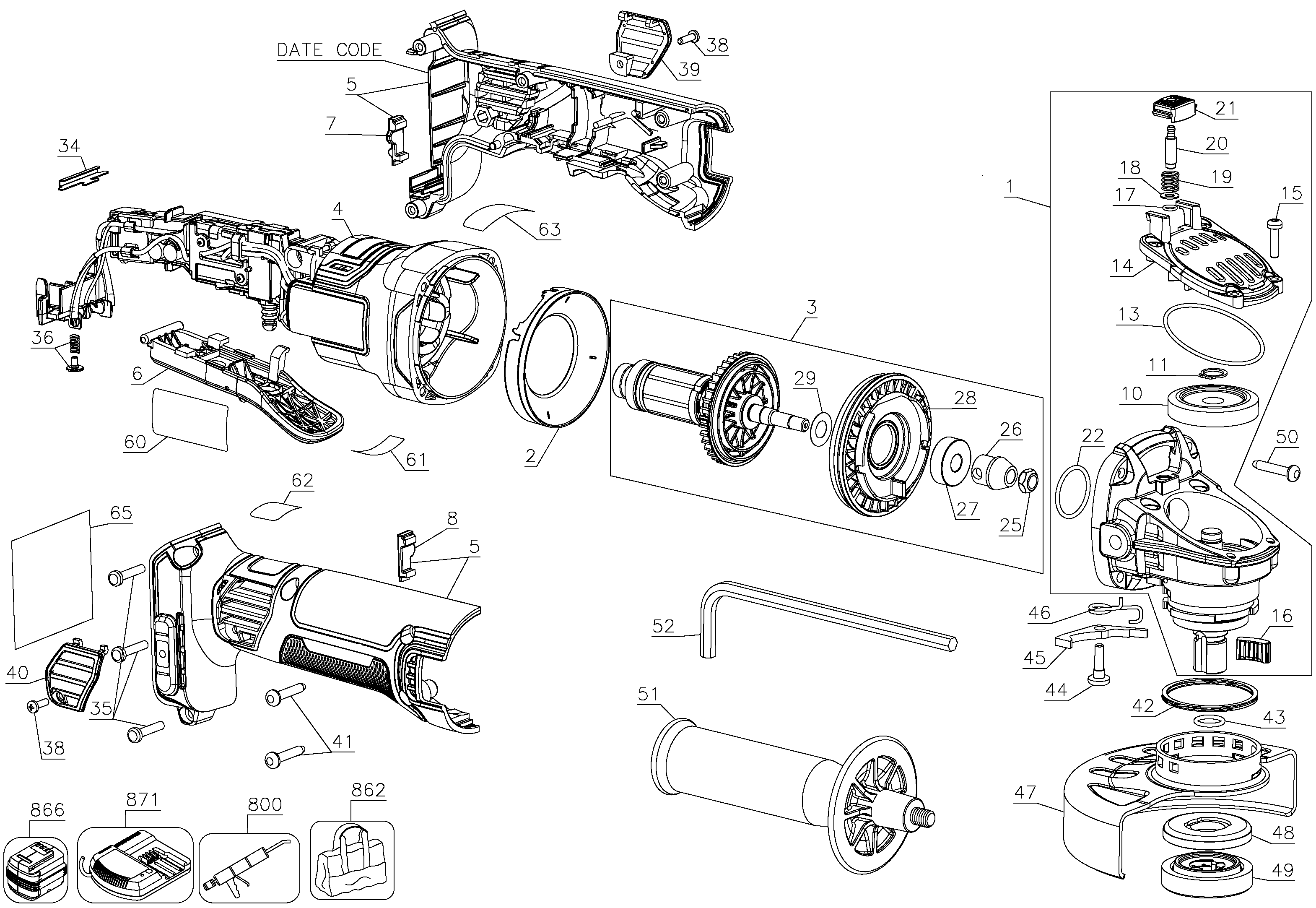

Exploded Diagram, Type 1
GIF
