D25614K
1-3/4 IN. SDS Max Combination Rotary Hammer Kit

Product Overview

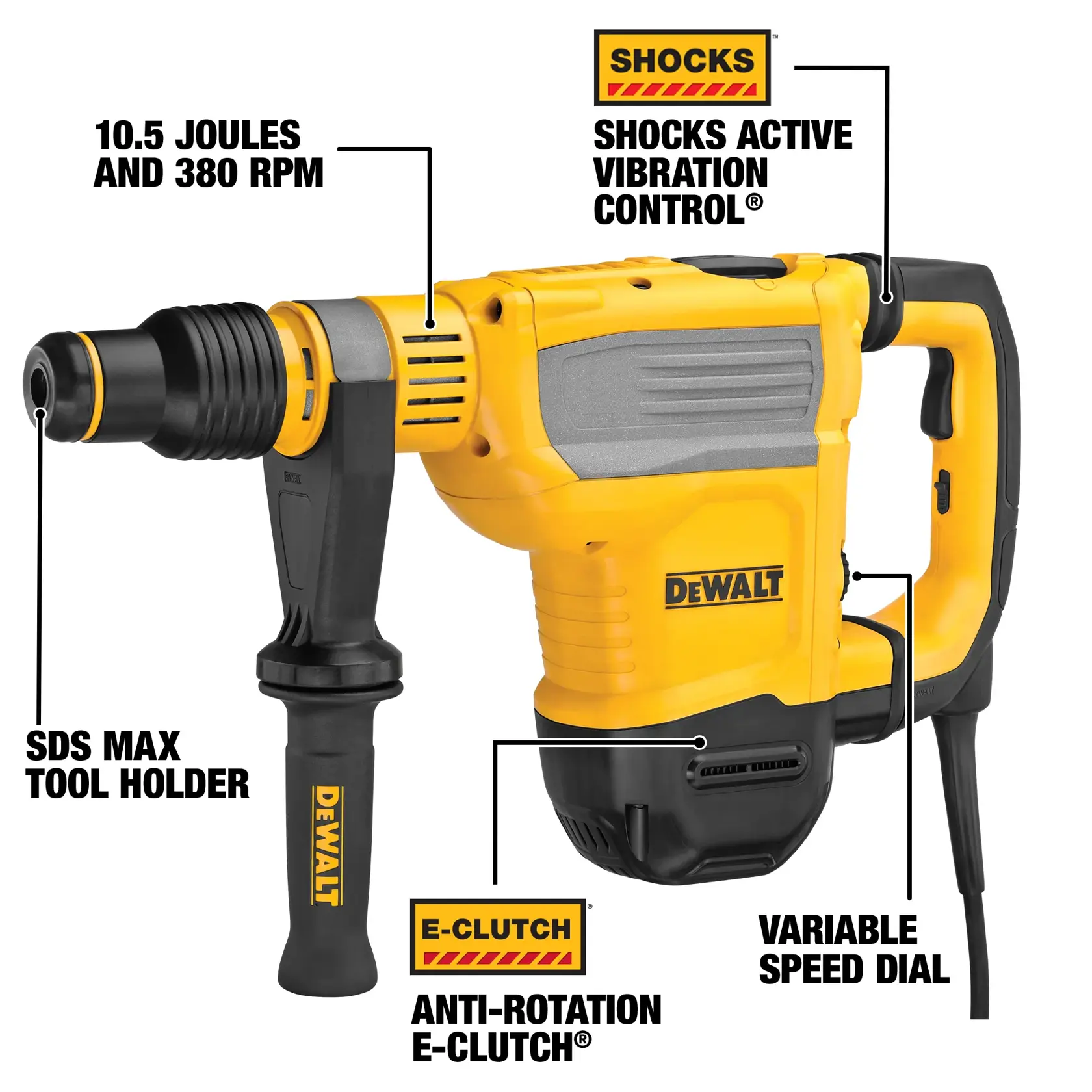

he 1-3/4 in. SDS Max Combination Hammer is a midweight, high-performance hammer that is powered by durable German-engineered mechanisms. It delivers 10.5 Joules of impact energy for fast drilling and chipping, even in the hardest concrete. Constant-speed electronics allow the tool to maintain speed under load, while the patented E-CLUTCH® system helps protect the user in bind-up situations by stopping the rotation of the bit. The midweight design makes it ideally suited for high-performance, horizontal serial drilling for #5 - #8 rebar, dry coring up to 4 in., chipping in any upper to lower wall, and bushing applications. The SHOCKS Active Vibration Control® system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This tool comes Tag Ready™, so users and companies can attach the DEWALT Tag™ and track its location virtually anywhere via the Tool Connect™ app.

Additional Features

  • 7-position, variable-speed control for precision hole placement, chipping, and drilling with Atomic Undercut bits.
  • Constant-speed electronics allow the tool to maintain speed under load.
  • Tag Ready™ so users and companies can attach the DEWALT Tag™ and track its location virtually anywhere via the Tool Connect app.
  • The midweight design makes it ideally suited for high-performance, horizontal serial drilling for #5 - #8 rebar, dry coring up to 4 in., chipping in any upper to lower wall, and bushing applications.

Applications

  • Drilling anchor and through-holes in concrete and masonry (5/8 in. - 1-1/4 in. recommended diameter range )

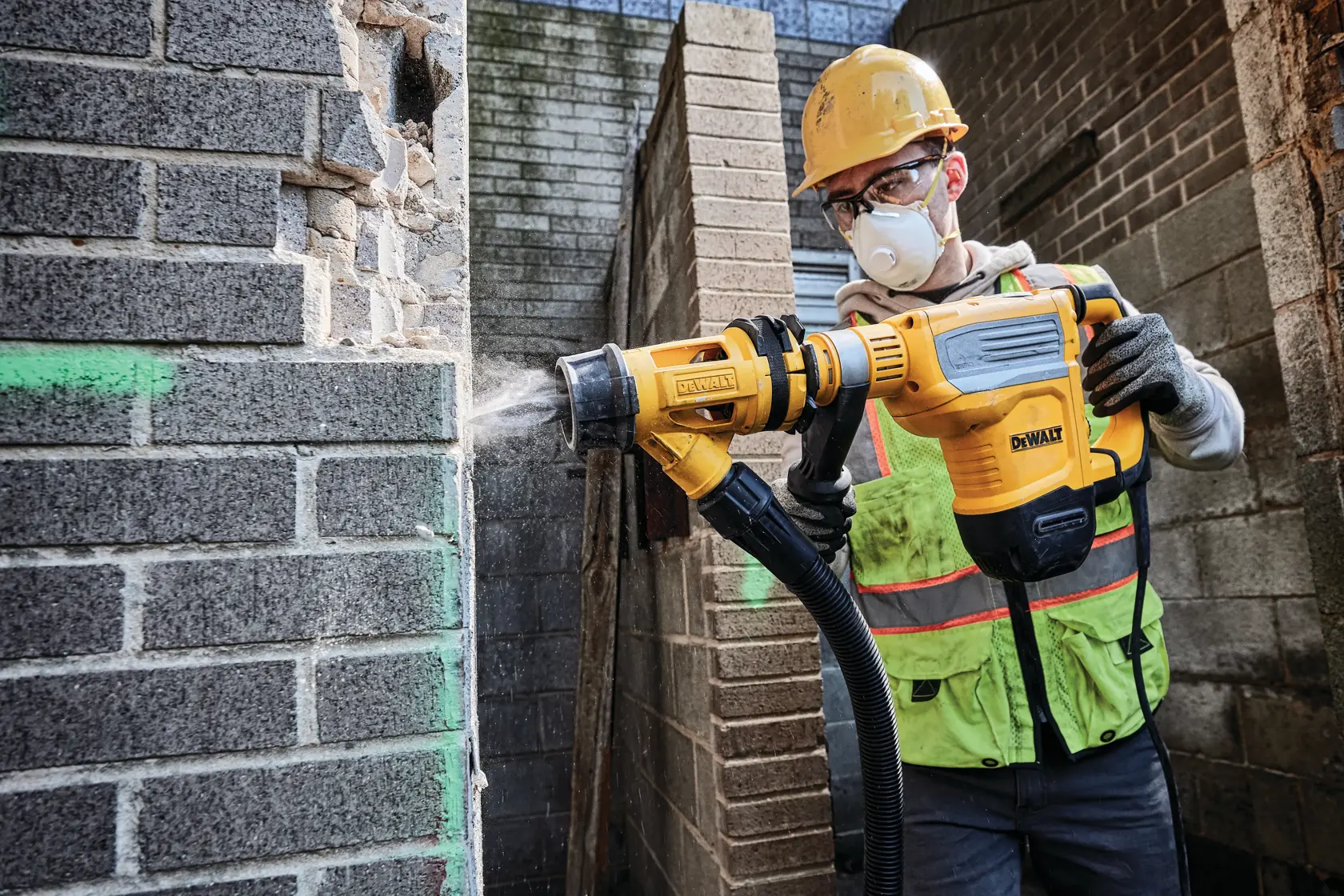

  • Medium-duty demolition work
  • Coring in masonry and concrete with core bits up to 4 in.diameter
  • Atomic Undercut Bit Drilling

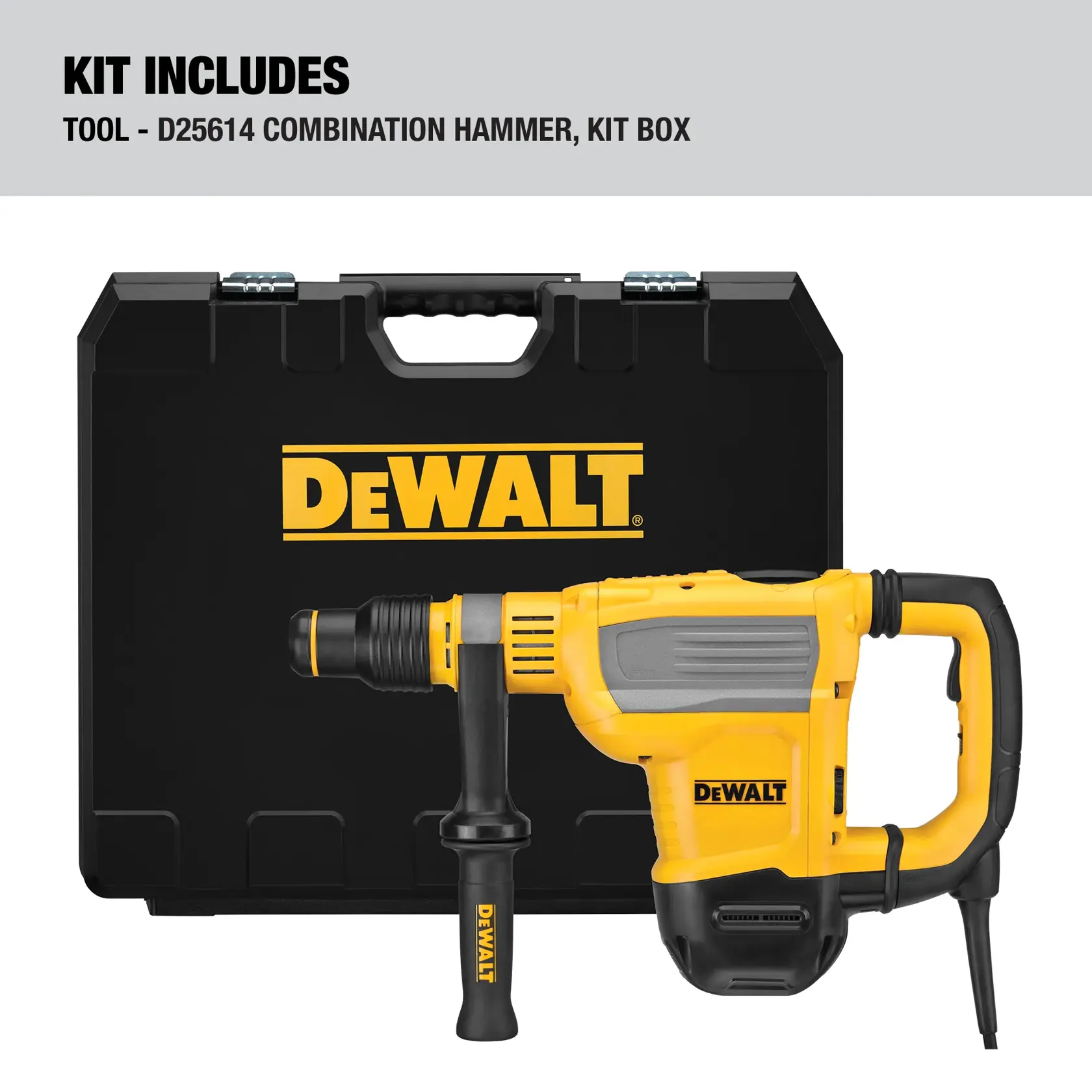

Includes

  • (1) (1) Rotary Hammer and (1) Kit Box

Specifications

Chuck size [Imperial]
1-3/4 in
Color
Yellow
No Load Speed (RPM)
375
Chuck Type
SDS Max
Cord Length [Imperial]
8 ft
Impact Energy (J) EPTA Value
10.5 Joules
System
SHOCKS System
Number of Pieces
3
Power Source
Corded
Amps
14 Amp

Support

Warranty

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
