DCN681D1

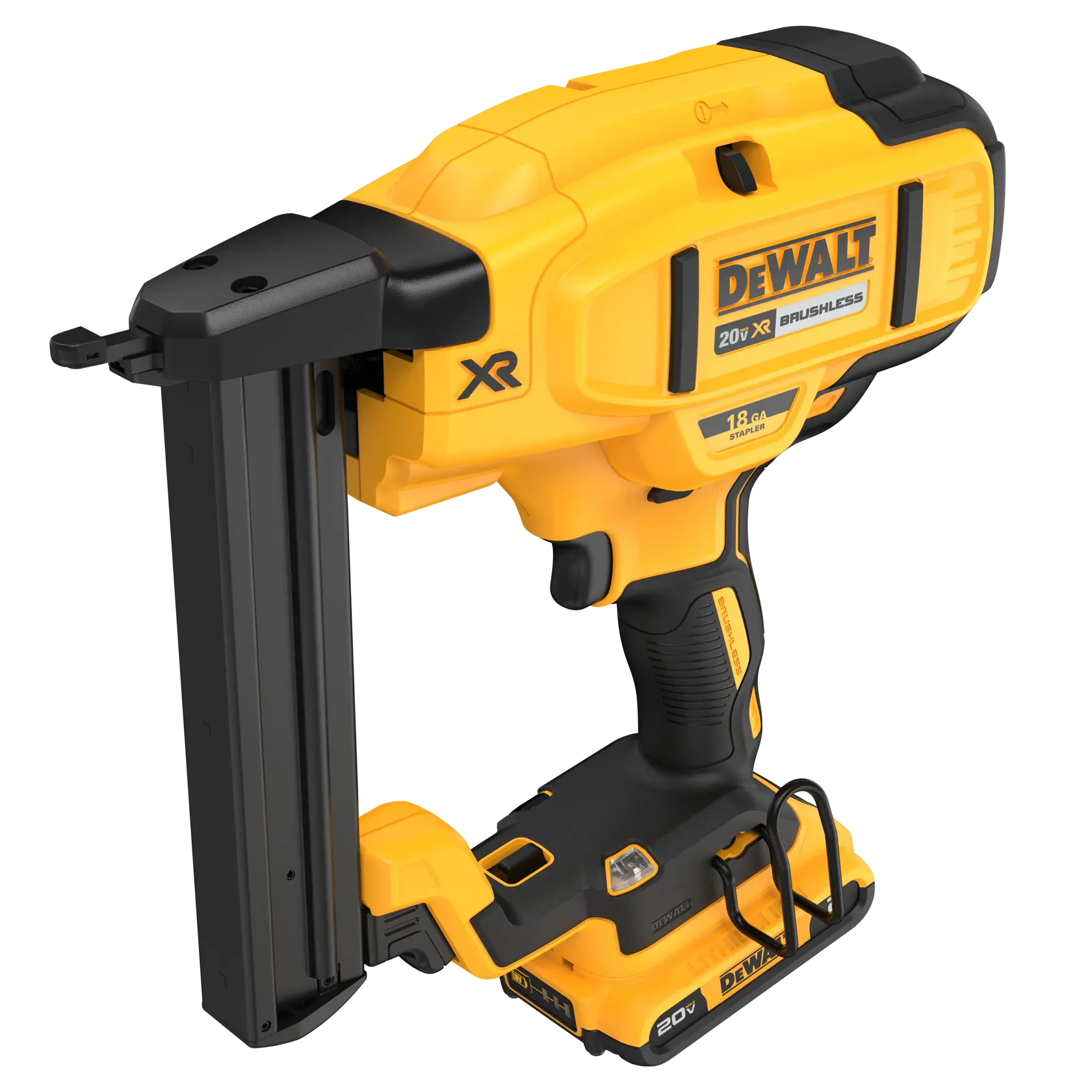

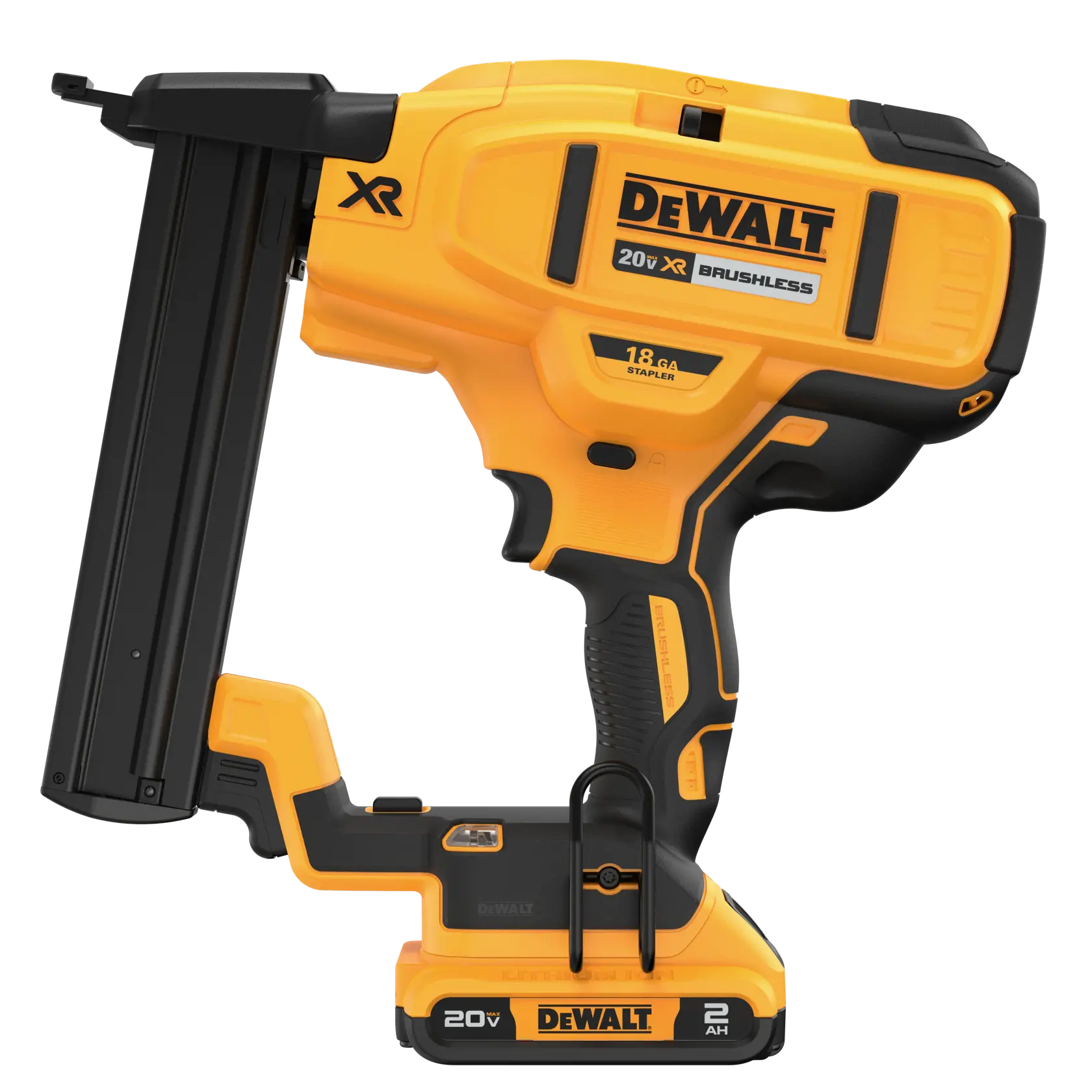

DEWALT® 20V MAX* XR® 18 GA Cordless Narrow Crown Stapler Kit

A DEWALT cordless nailer kit including a yellow and black carrying bag with the DEWALT logo, a battery charger, and a yellow DEWALT 20V XR brushless nail gun with a battery.

Reviews

Explore More Options

Current Option

Product details

The DEWALT® DCN681 18 Gauge Narrow Crown Stapler drives 18 Gauge 1/4 in. narrow crown staples from 1/2 in. to 1-1/2 in. which makes it ideal for cabinetry, furniture, paneling, and flooring underlayment. With its brushless motor powered by a DEWALT® 20V MAX* Lithium-Ion battery the DCN681 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. * - maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

  • 100% battery powered. Eliminates the hassle of using gas, compressor, and hose
  • Compatible with all DEWALT® 20V MAX* batteries
  • Brushless motor maximizes runtime and durability
  • Tool-free selectable trigger for sequential or contact actuation modes
  • Tool-free depth adjustment for precise countersinking of staples
  • Low nail lockout prevents dry firing and unwanted marks on the work material
  • Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
  • Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
  • Adjustable belt hook for left or right attachment depending on user preference
  • Bottom load magazine for easy loading and removal of jammed fasteners

Product Type
Crown Stapler
Voltage
20V
Cordless or Corded
Cordless
Power Source
Battery
Tool Only
No

  • (1) DCB203 - 2.0Ah Battery
  • (1) Charger
  • (1) Kit Bag
  • (1) DCN681 - Narrow crown stapler

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

* * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Downloads and manuals

Instruction Manual, Type 1
N509094_DCN681.pdf
PDF
Instruction Manual, Type 1
NA517222_DCN681_NA_-_NBC.pdf
PDF
Instruction Manual, Type 1
NA407764_man_dewalt_batteries_and_chargers_half_letter_NA.pdf
PDF

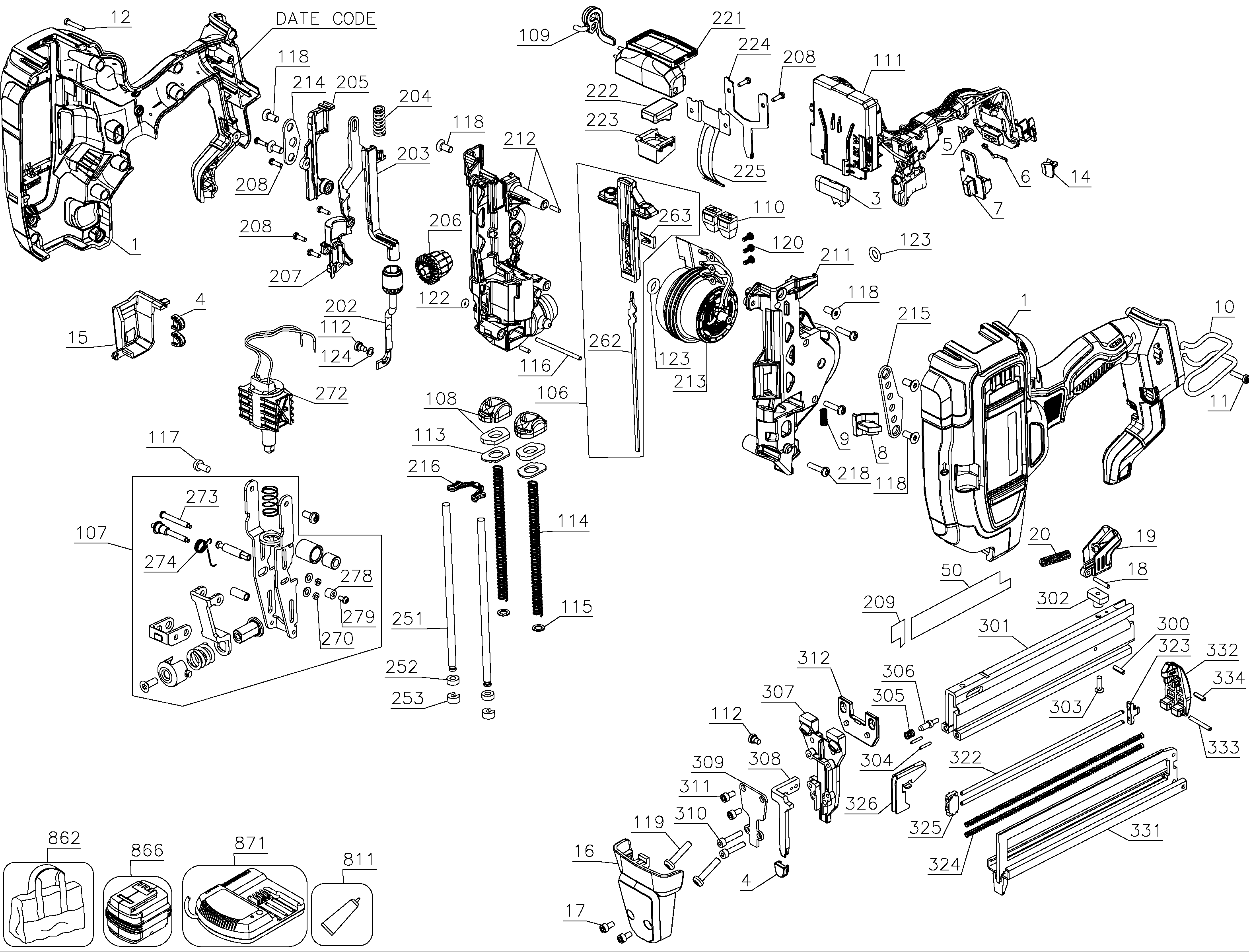

Exploded Diagram, Type 1
GIF
