DCS494B

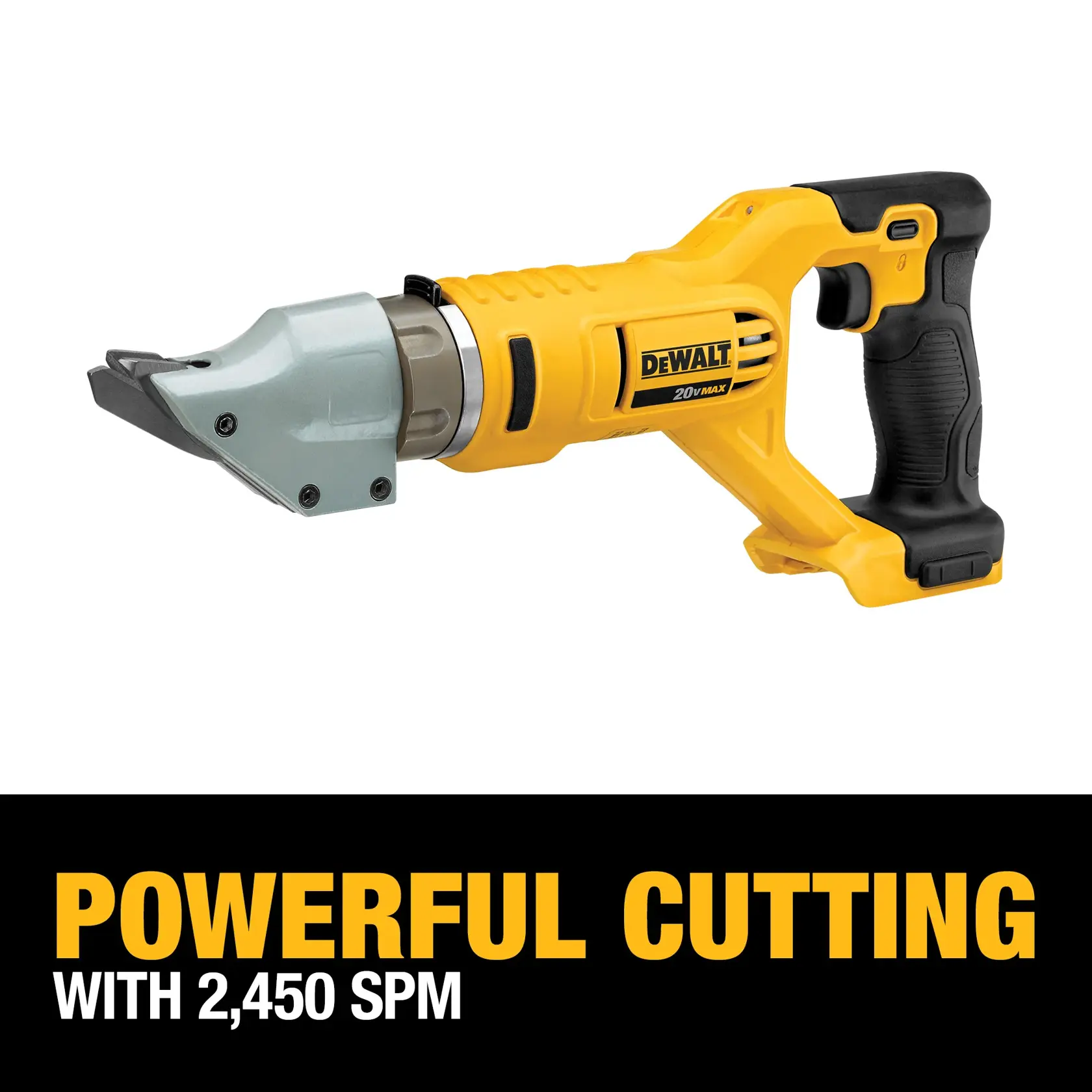

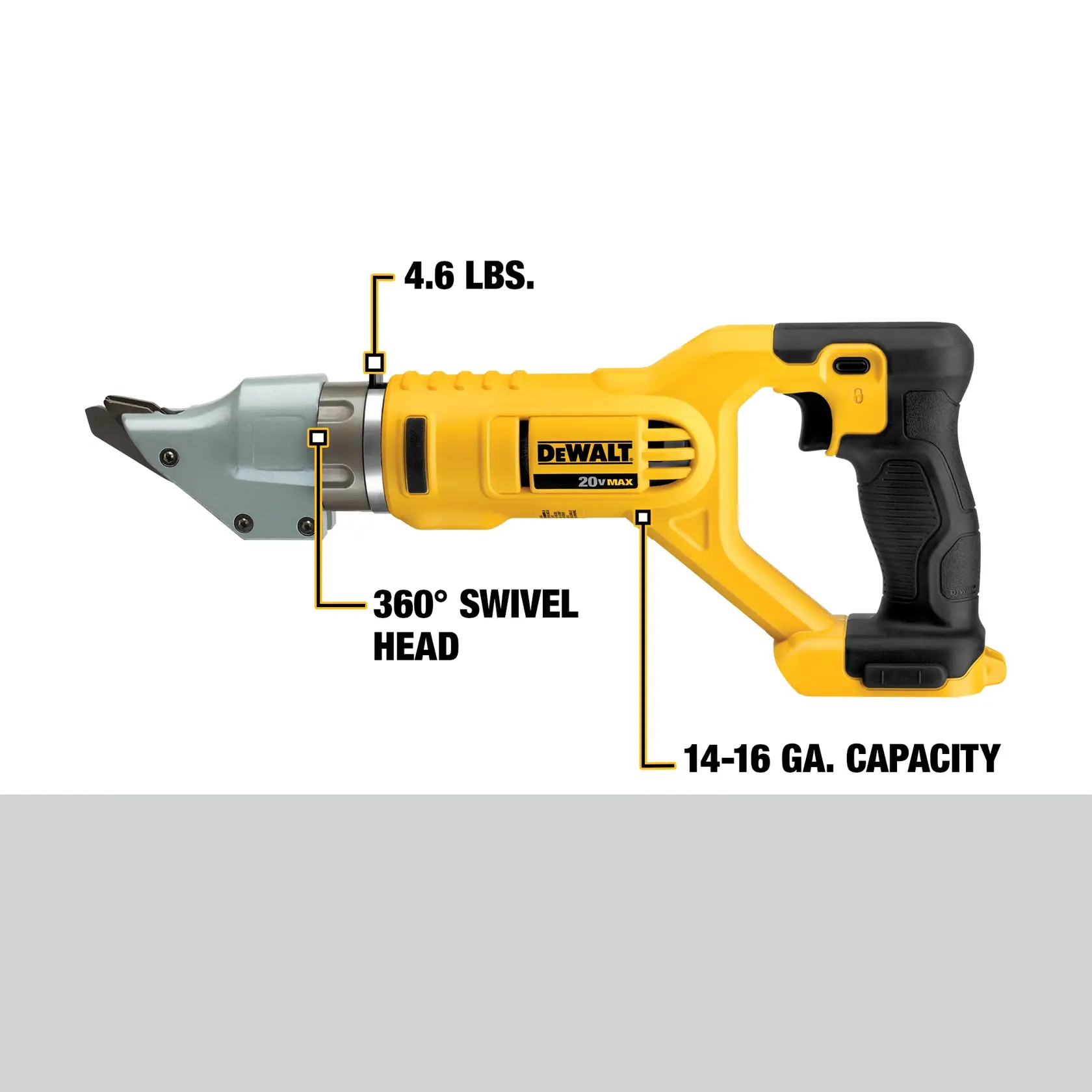

DEWALT® 20V MAX* 14 Gauge swivel Head Double Cut Metal Shear (Tool Only)

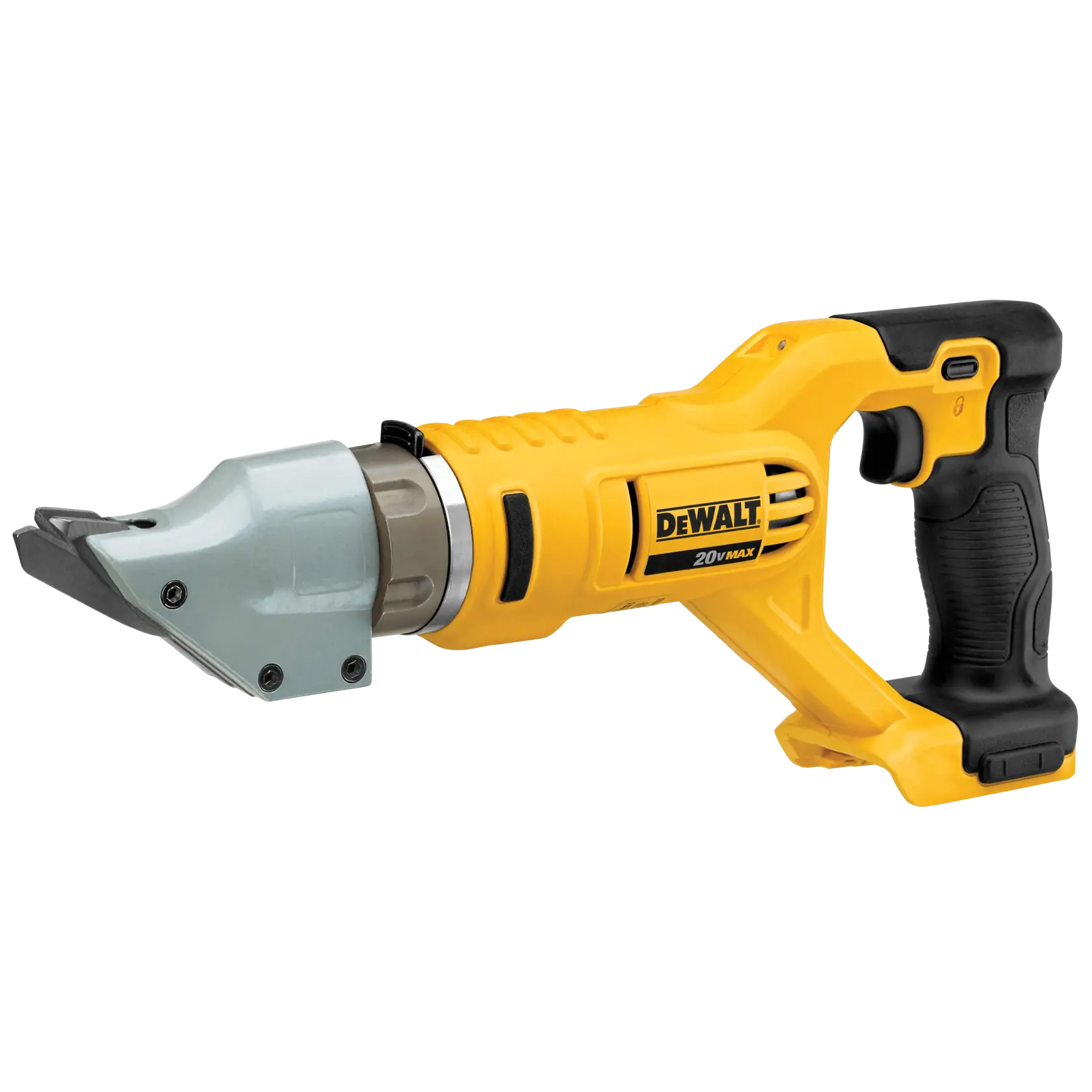

A DeWalt 20V Max cordless metal shear tool in yellow and black color, shown from the side.

Reviews

Product details

The DEWALT® DCS494B 20V MAX* 14ga swivel Head Double Cut Shears, Bare tool is a 360 degree tool with a free swivel head which allows user to access tight quarters while maintaining comfort. These shears can cut a 7/32" strip which continuously curls out of the cutting area providing consistent and accurate cuts. They also features an LED work light which illuminates surface areas. Cordless shears allows user to take the tool to the workplace. Capacity (stainless steel): 16ga, Capacity (mild steel): 14ga, Speed: 2,450 spm, Min cutting radius: 5 Inches. This is a bare tool times, battery sold separately. Includes: (1) DCS494 shears, (1) Hex wrench.

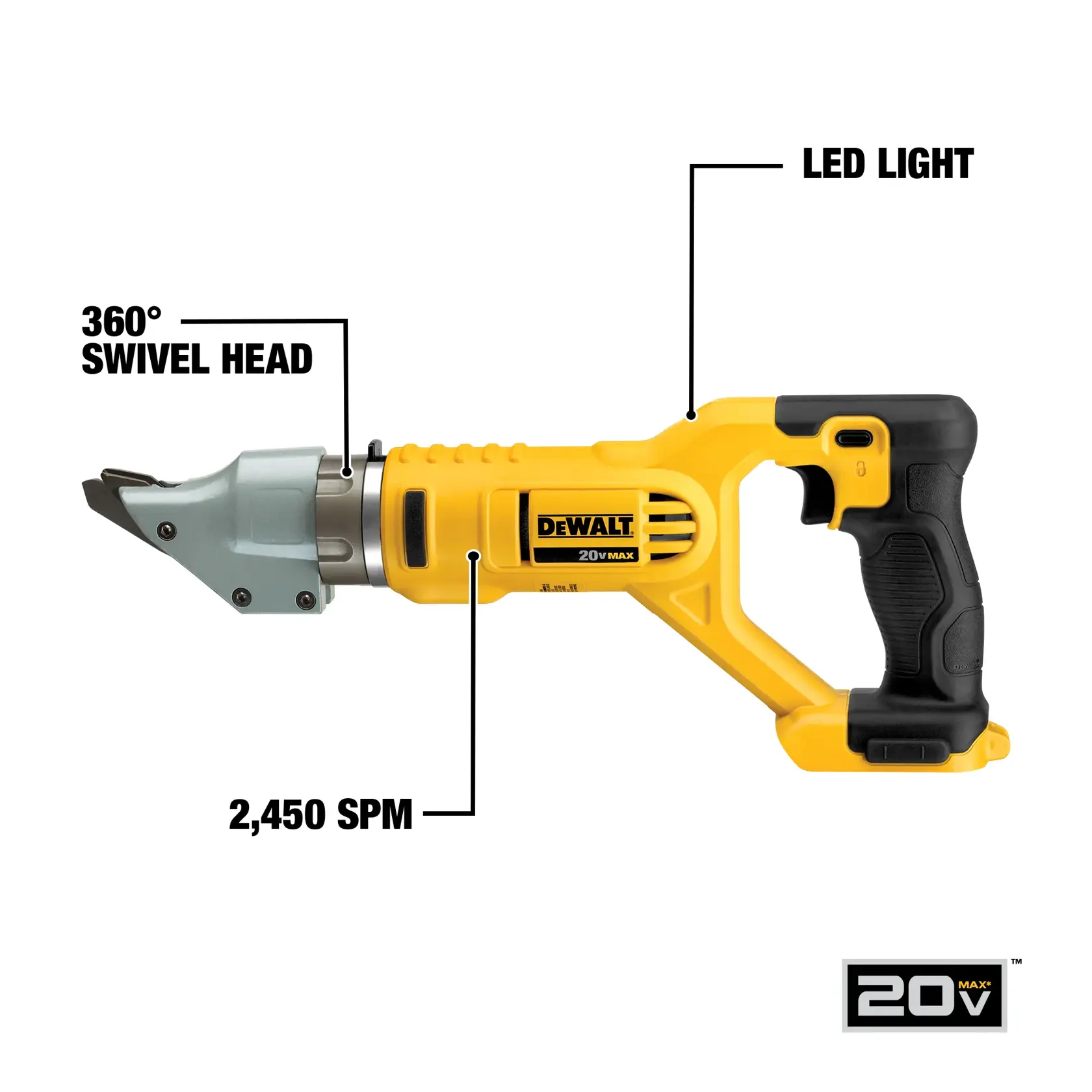

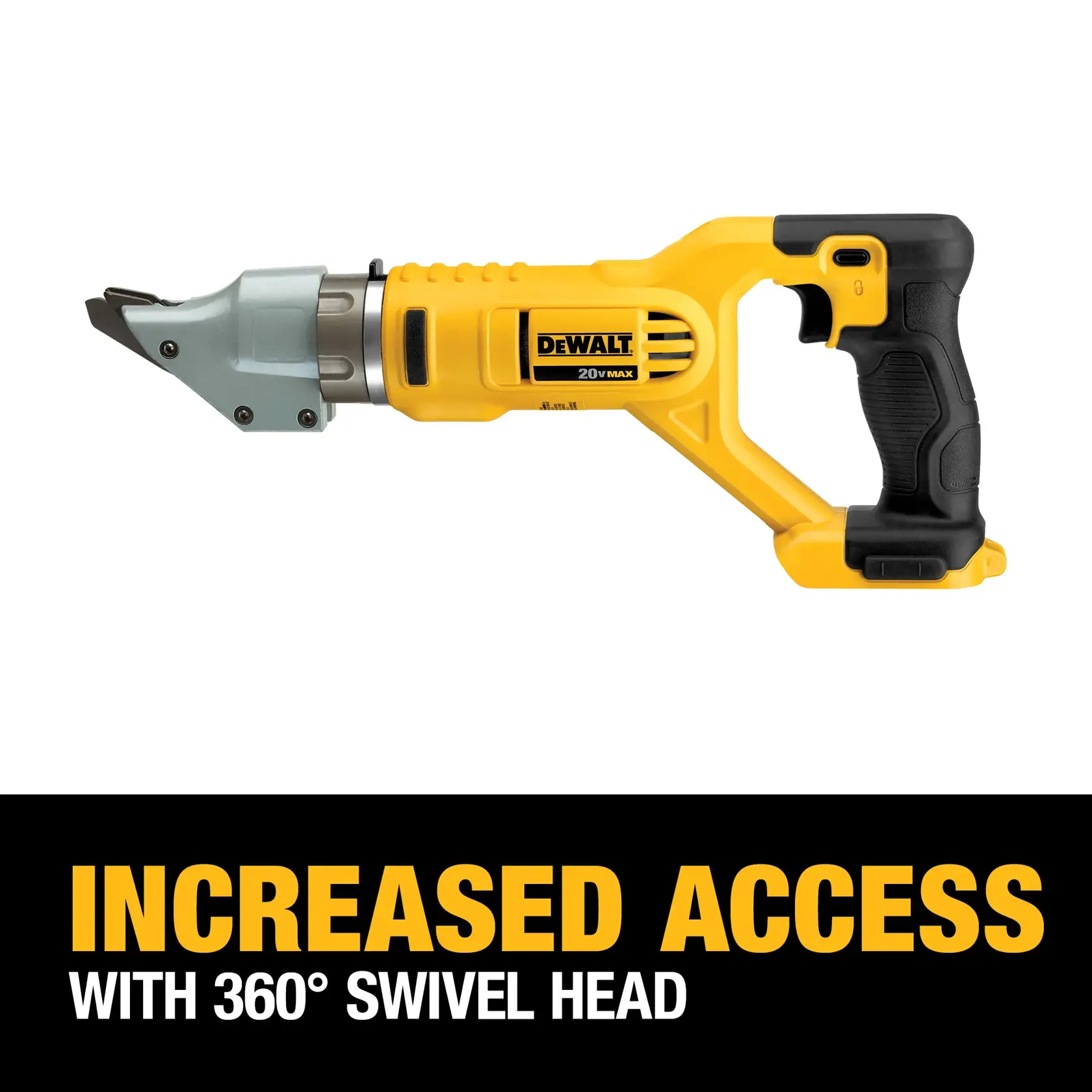

  • 360 degree tool free swivel head which allows user to access tight quarters while maintaining comfort.
  • Cuts 7/32 " strip which continuously curls out of the cutting area providing consistent and accurate cuts.
  • LED work light illuminates surface.
  • Cordless shears allows user to take the tool to the workplace

Voltage
20V
Power Source
Cordless
Tool Only
Yes
Battery Included
No
Cordless or Corded
Cordless

  • (1) Hex wrench
  • (1) Dcs494 (tool only)

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

* * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Downloads and manuals

Instruction Manual, Type 1
N461161_DCS496.pdf
PDF

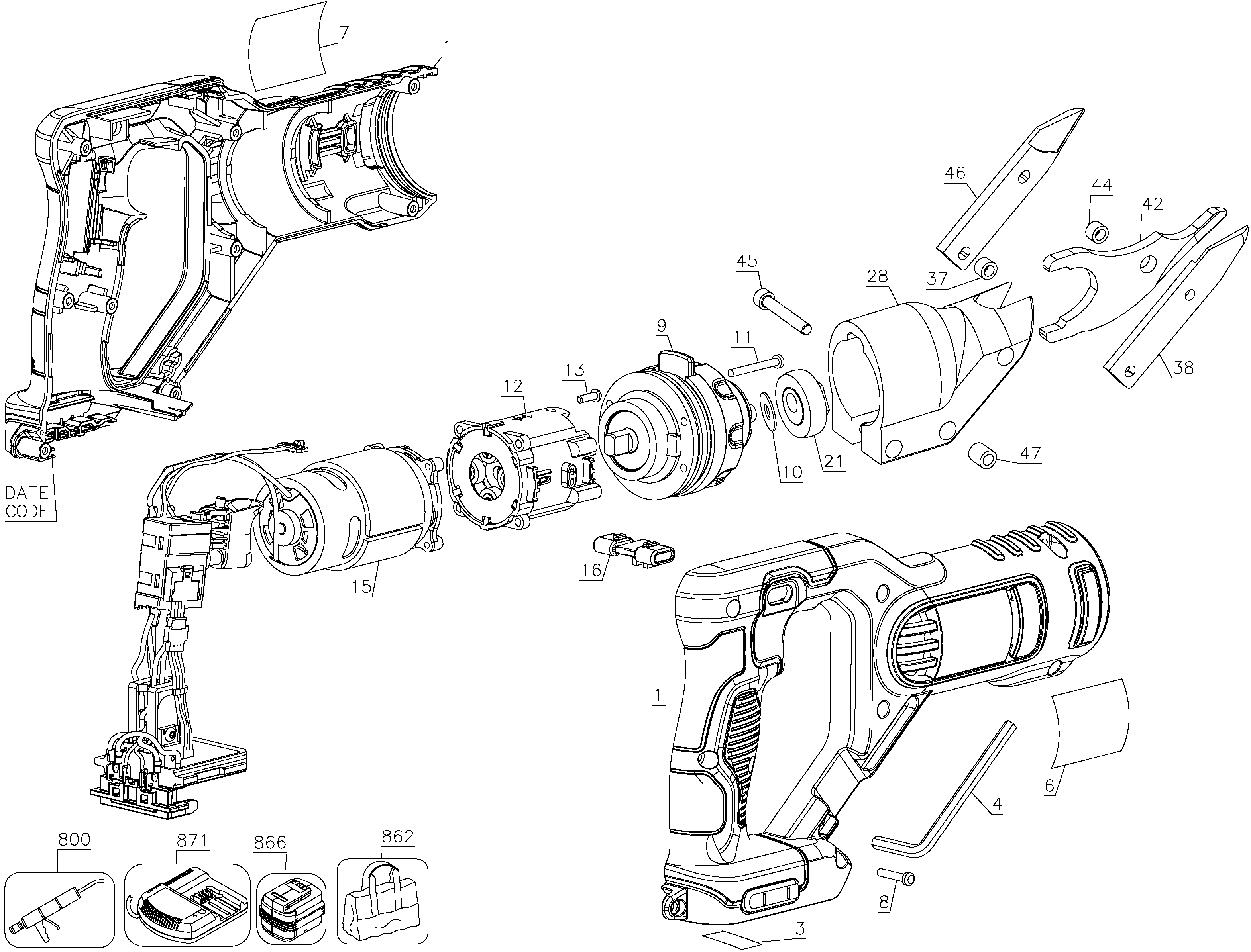

Exploded Diagram, Type 1
GIF
