DCW620B
DEWALT® 20V MAX* XR® 2-1/4 Peak HP™ Plunge Router (Tool Only)
Reviews
Product details

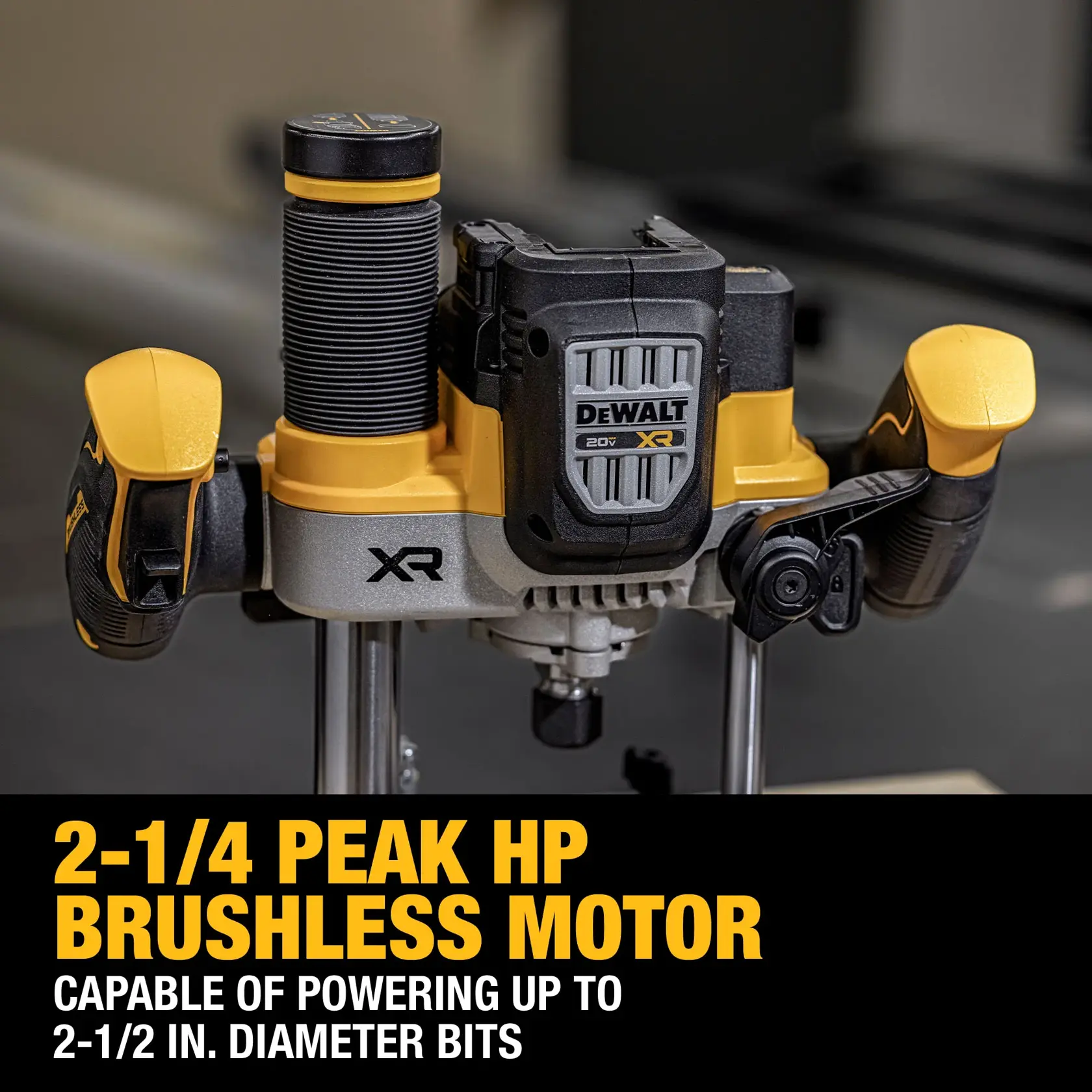

The world's first 20V MAX* cordless 2-1/4 Peak HP™ dedicated plunge router delivers consistent cutting performance without the hassles of a cord. From meticulous edgework to aggressive plunge cuts, the 20V MAX* XR®2-1/4 Peak HP™ Plunge Router (battery and charger sold separately) features a 2-1/4 peak horsepower brushless motor that seamlessly handles bits up to 2-1/2 in. in diameter. The variable speed dial helps maximize user control while maintaining constant speed under load. This router can complete up to 256 linear feet routing 5/8 in. round overs in pine on a single charge and helps to maintain a clean workspace with integrated dust collection with AirLock compatibility. Designed for tough jobsites, the PERFORM & PROTECT ANTI-ROTATION system senses the motion of the tool and shuts it down if the motion is excessive. Battery & Charger Sold Separately

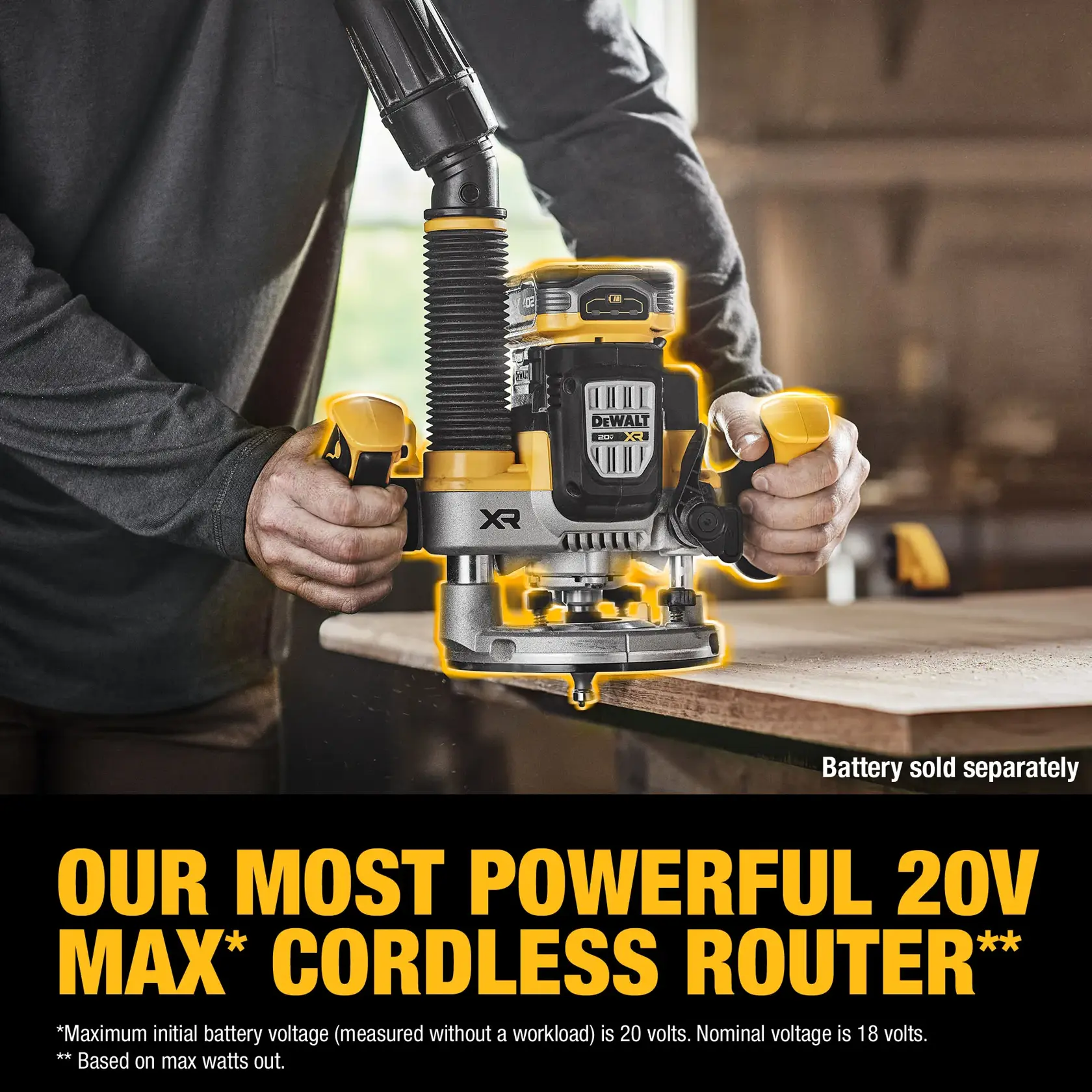

- Our Most Powerful 20V MAX* Cordless Router* - Take on tough applications without the hassle of a cord.

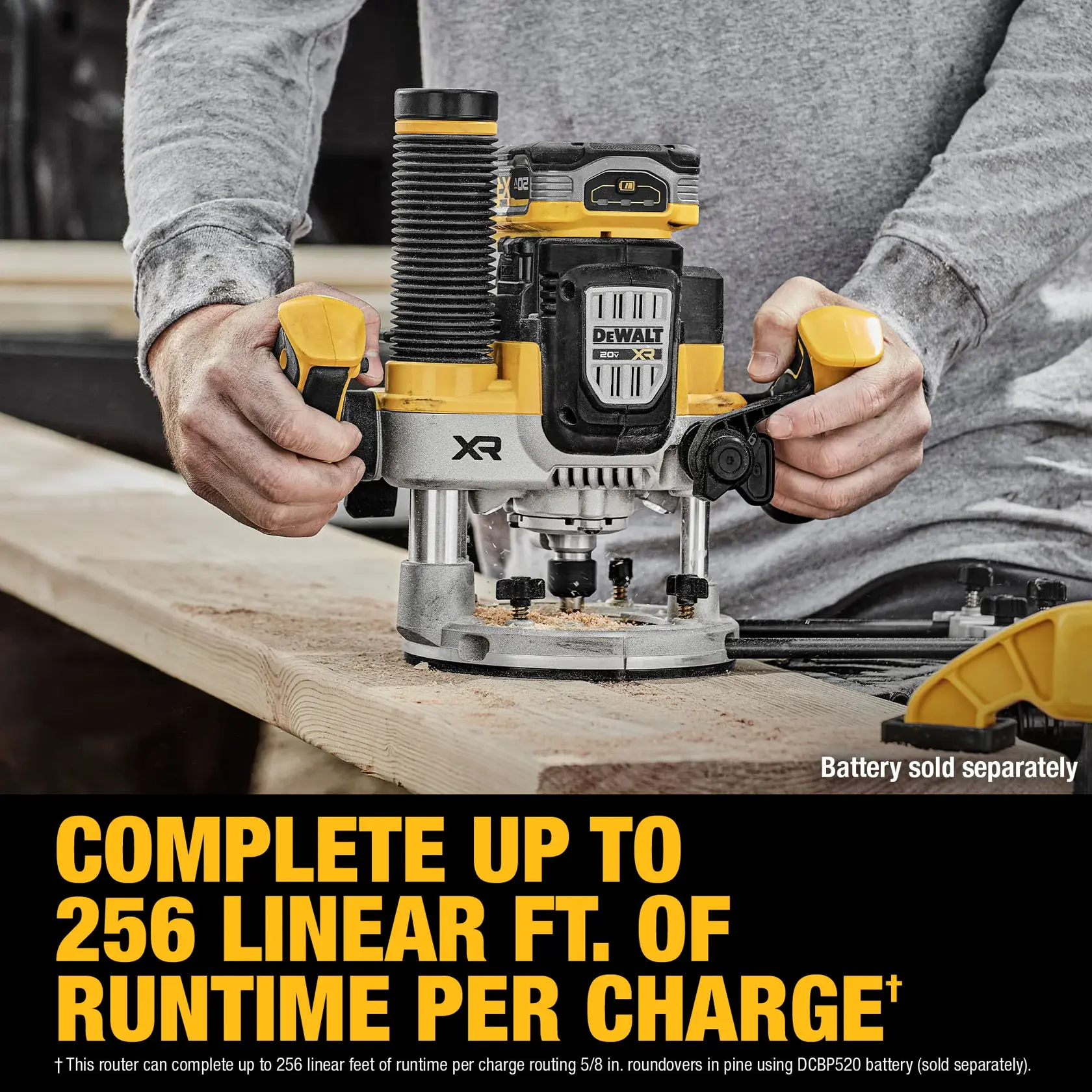

- Help Maximize Productivity - Complete up to 256 linear feet routing 5/8 in. Roundovers in pine on a single charge (using dcbp520 battery sold separately).
- Integrated Dust Collection With AIRLOCK Compatibility - Collects up to 97% of dust cutting grooves in particleboard using dcbp520 battery and dwv015 dust extractor (battery and extractor sold separately)

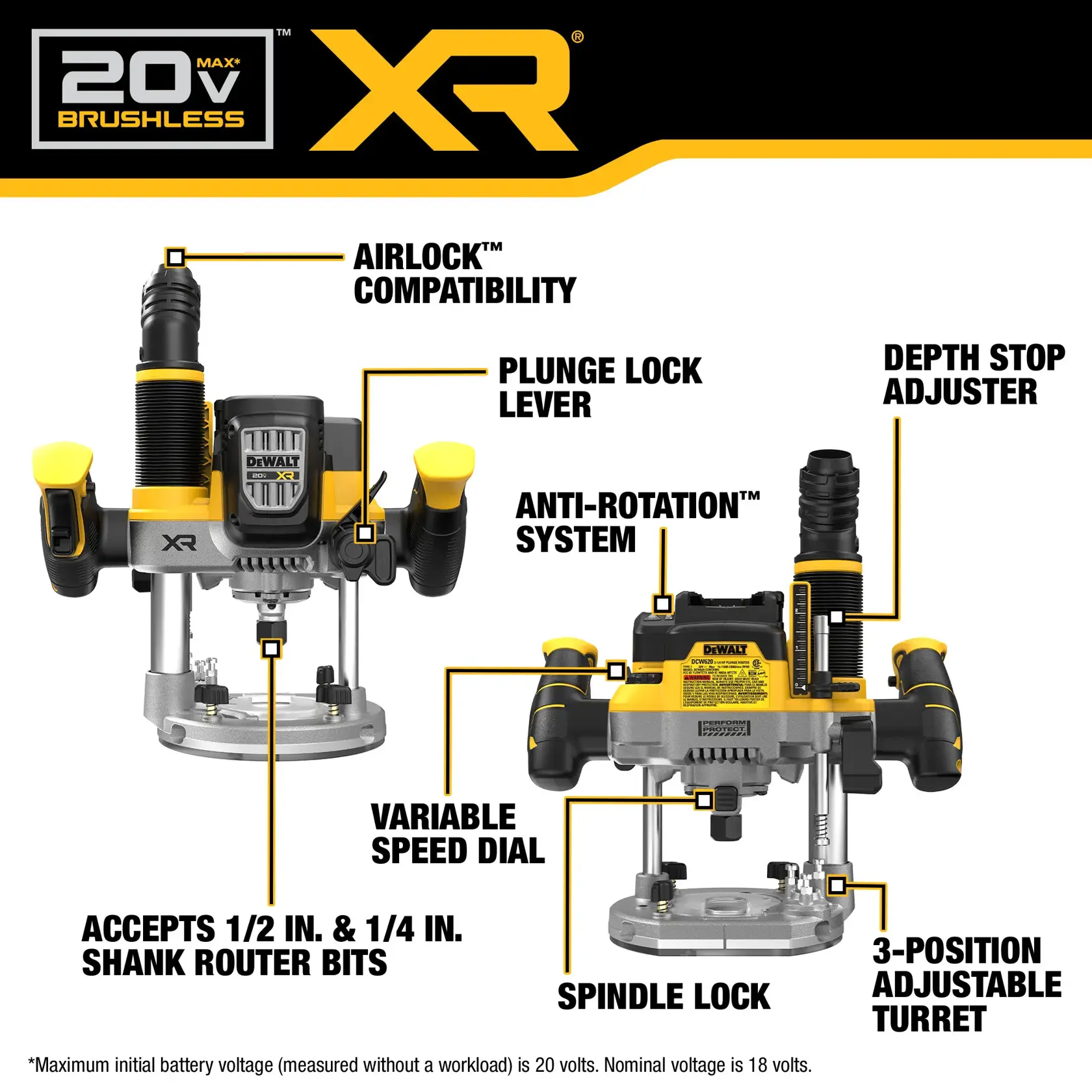

- Help Maximize Control - Equipped with the anti-rotation system that senses the rotational motion of the tool and shuts it down if the motion is excessive. The red LED indicator illuminates when the anti-rotation system is engaged.
- Versatile Performance - Quickly match the speed of the router to the application at hand with the variable speed dial with constant speed under load that offers (no-load) 11,000-23,000 rpms.
- Adjustable Turret Stop - Make quick depth adjustments with the 3-position adjustable turret stop.
- Tool-free Depth Adjustment System - Quickly and accurately setup with the depth adjustment scale, depth stop, micro-fine depth stop adjuster, and micro-fine height adjuster.
- Tool-free Plunge Lock Lever - Seamlessly engage and disengage the lock lever without having to remove hands from handles.
- Dual LED - Helps provide additional illumination of the work surface for bit visibility.
- Balanced Design - Get precise routing performance with a compact design of 11. 5 in. In height, weighing only 8 lbs. (TOOL ONLY).
Product Type
Router
Voltage
20V
Power Source
Battery
Cordless or Corded
Cordless
Tool Only
Yes
- (1) 20V MAX* XR 2-1/4 Peak HP Plunge Router (Tool Only)
- (1) 1/4 in. (6.4mm) Collet with nut
- (1) 1/2 in. (12.7mm) Collet with nut
- (1) Wrench
- (1) Dust cap
- (2) Dust Shield
- (1) Dust port w/ AIRLOCK Compatibility
- (1) Chip collector
- (1) Centering cone
- (2) Sub-base
- (1) 30mm Guide Bushing
- 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
Our DEWALT® Customer Service team is available 24 hours a day, 7 days a week. Contact us via chat, form, or phone.
Customer Support* *Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. **Based on max watts out. †Using DCBP520 20V MAX* XR POWERSTACK Battery (battery sold separately) DEWALT Perform & Protect products are designed to provide a high level of one or more of the following, dust containment, control or low vibration, without sacrificing performance.
