DWS780

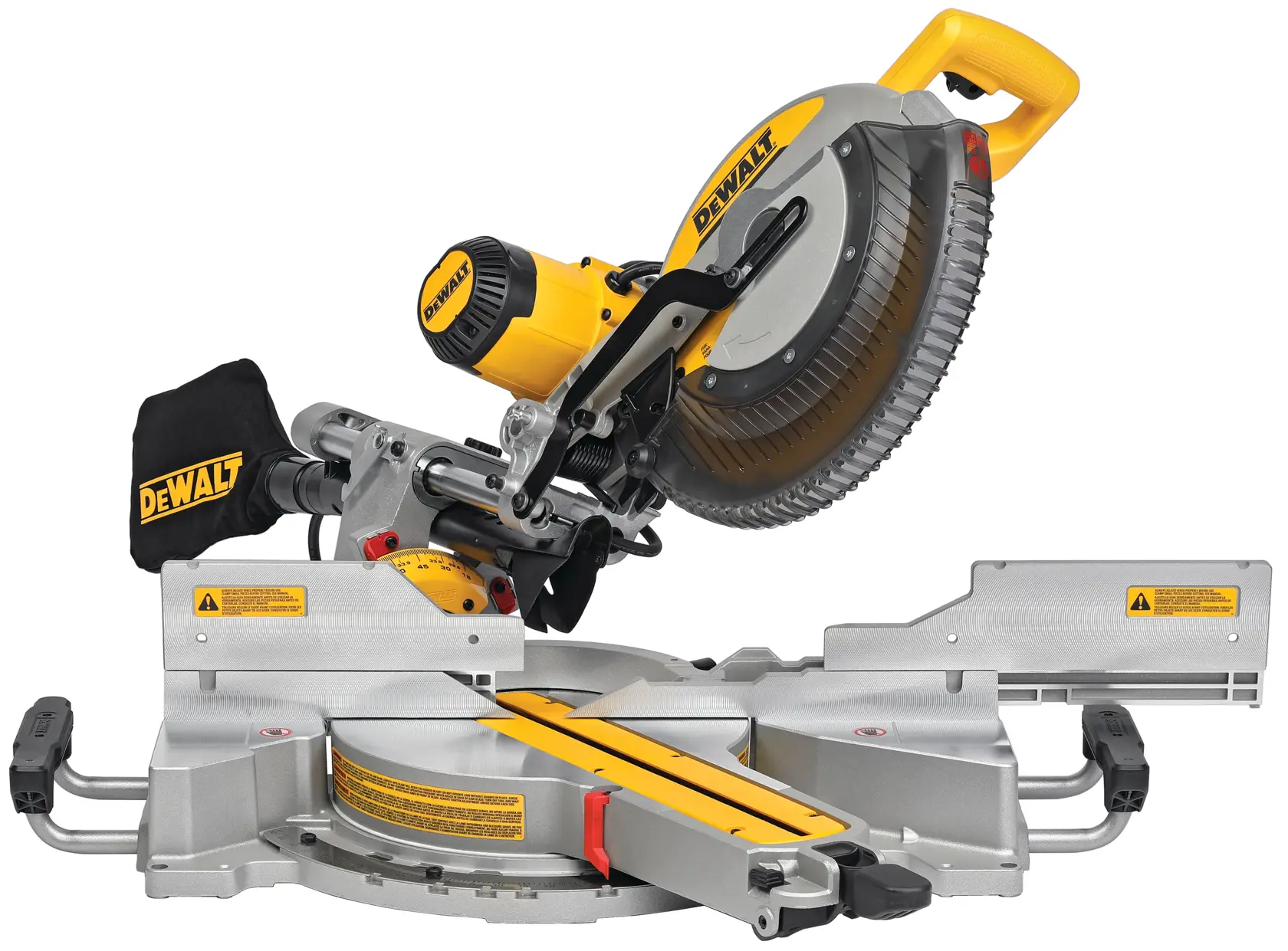

DEWALT® 12-in. (305mm) Double Bevel Sliding Compound Miter Saw
Reviews
Product details
Take a tough miter saw applications with this 12 in. Double-Bevel Sliding Compound Miter Saw. a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication, this tool is designed with a durable stainless-steel miter detent plate with cam lock.
- Dimensions - 35cm x 45cm x 25cm
- 1100 watt motor designed for heavy duty applications
- Integrated cutline blade positioning system provides adjustment free cut line indication for better accuracy and visibility
- Powerful 15 amp, 3,800 RPM motor delivers extended power and durability
- Super-efficient dust collection system captures over 75% of dust generated
- Tall sliding fences support crown molding up to 7-1/2 in. Nested and base molding up to 6-3/4 in. Vertically against the fence while easily sliding out of the way for bevel cuts
- Fence design allows cuts up to 2x14 dimensional lumber at 90° and 2x10 at 45°
- Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
- Miters 60° to the right and 50° to the left providing increased capacity
- Oversized bevel scale makes bevel angle adjustments accurate and easy
Product Type
Miter Saw
Voltage
110
Cordless or Corded
Corded
Power Source
Corded
Motor Type
Brushed
- (1) Blade Wrench
- (1) Dust Bag
- (1) Vertical Material Clamp
- (1) 12-Inch Carbide Blade
- (1) 12-Inch Miter saw
- 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
Our DEWALT® Customer Service team is available 24 hours a day, 7 days a week. Contact us via chat, form, or phone.
Customer SupportDownloads and manuals
Instruction Manual, Type 24
NA379778_DWS780_NA.pdf
PDF
Instruction Manual, Type 30
NA379778_DWS780_TY30_NA.pdf
PDF

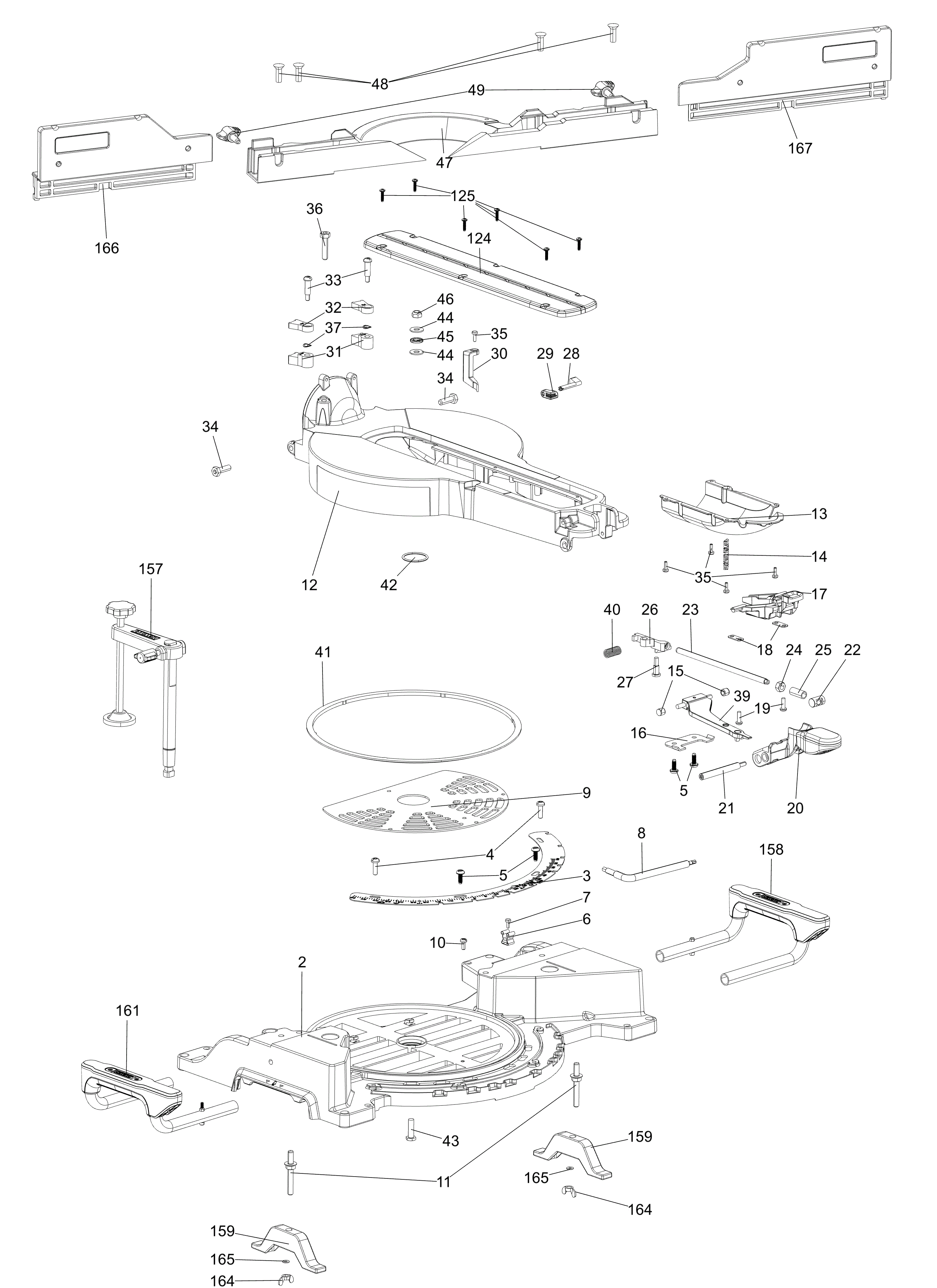

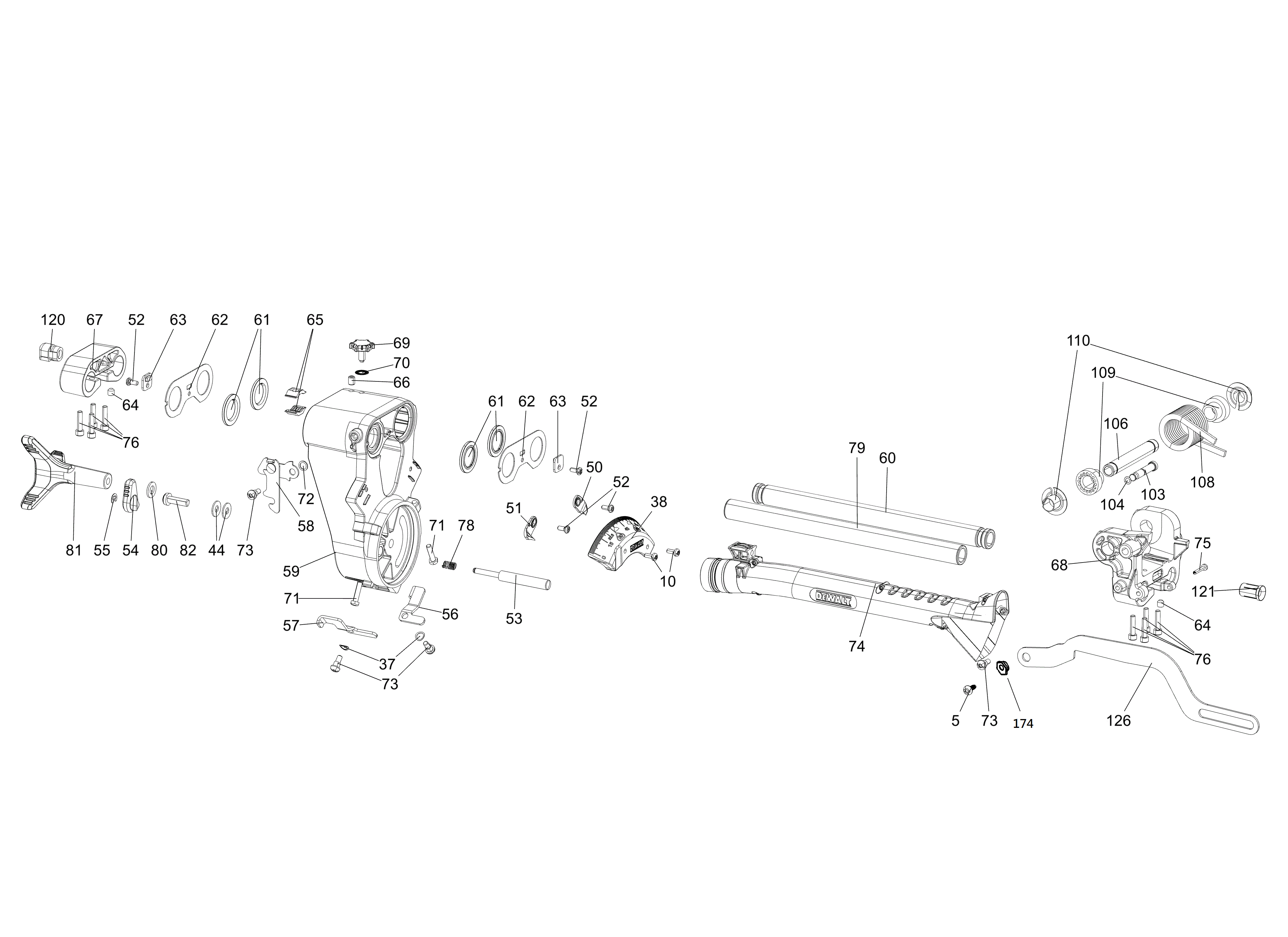

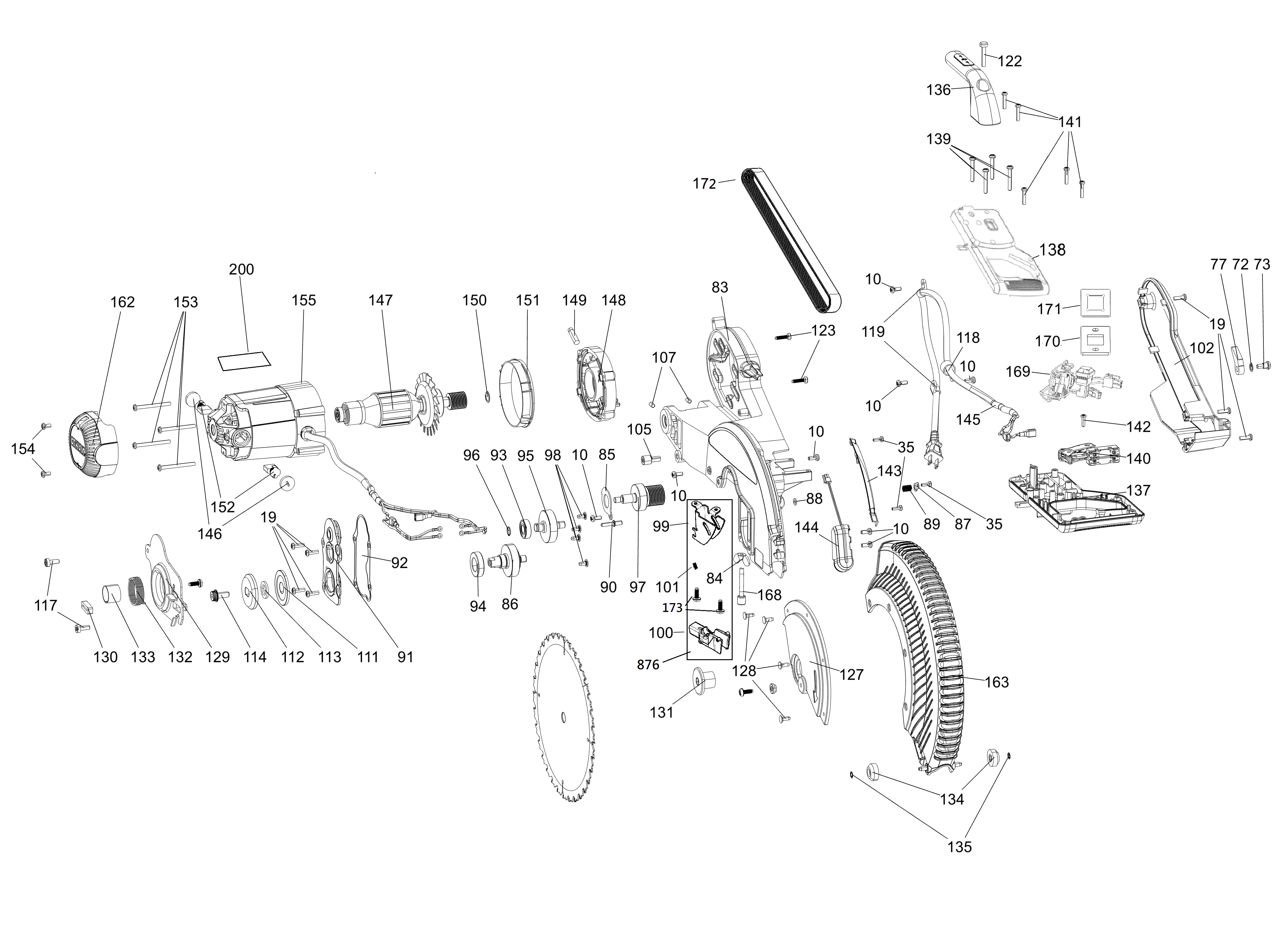

Exploded Diagram, Type 24
GIF
Exploded Diagram, Type 24
GIF
Exploded Diagram, Type 24
GIF
Exploded Diagram, Type 30
DWS780.svg
SVG
