DXCMH9919910

DEWALT® 2-Stage Electric Air Compressor (120 gal)

A large yellow DEWALT air compressor with a horizontal tank and dual black cylinder pump on top, seen from the front against a white background.

Reviews

Product details

With a patented pump and piston design that improves compression efficiency, this 120 Gal. 2-Stage Electric Air Compressor is the perfect addition to your workspace. Designed to provide industrial performance while operating more than one tool at a time. The cast iron construction adds unmatched durability.

  • Comes equipped with pre-wired and mounted magnetic starter which saves time and money
  • Featuring a running horsepower of 10.0 and a 3-phase capability
  • Utilizes cast iron construction for durability, dependability and smooth operation
  • Offers a 35.0-CFM at 100-PSI and 33.6-CFM at 175-PSI with 230v

Product Type
Compressor
Cordless or Corded
Corded
Power Source
Electric
CFM
35-cfm
Assembled Product Weight
920-lbs

  • (1) DXCMH9919910 Air Compressor

  • Missing Warranty Code

Downloads and manuals

Instruction Manual, Type 0
200-2943-D__DXCMH9919910_VR_12-9-19.pdf
PDF
Instruction Manual, Type 0
200-2943-E_DXCMH9919910_VR_3-29-22.pdf
PDF

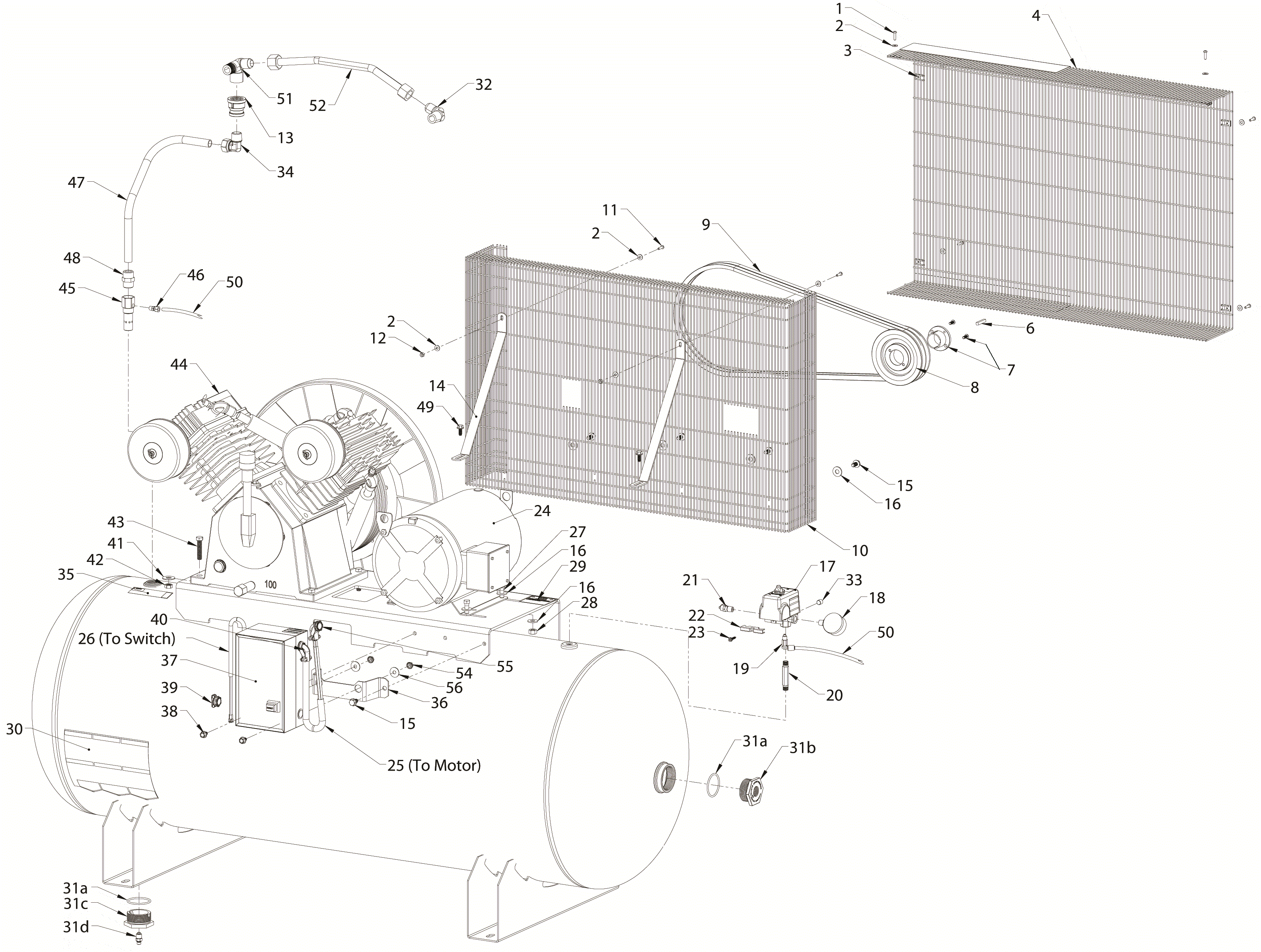

Exploded Diagram, Type 0
GIF

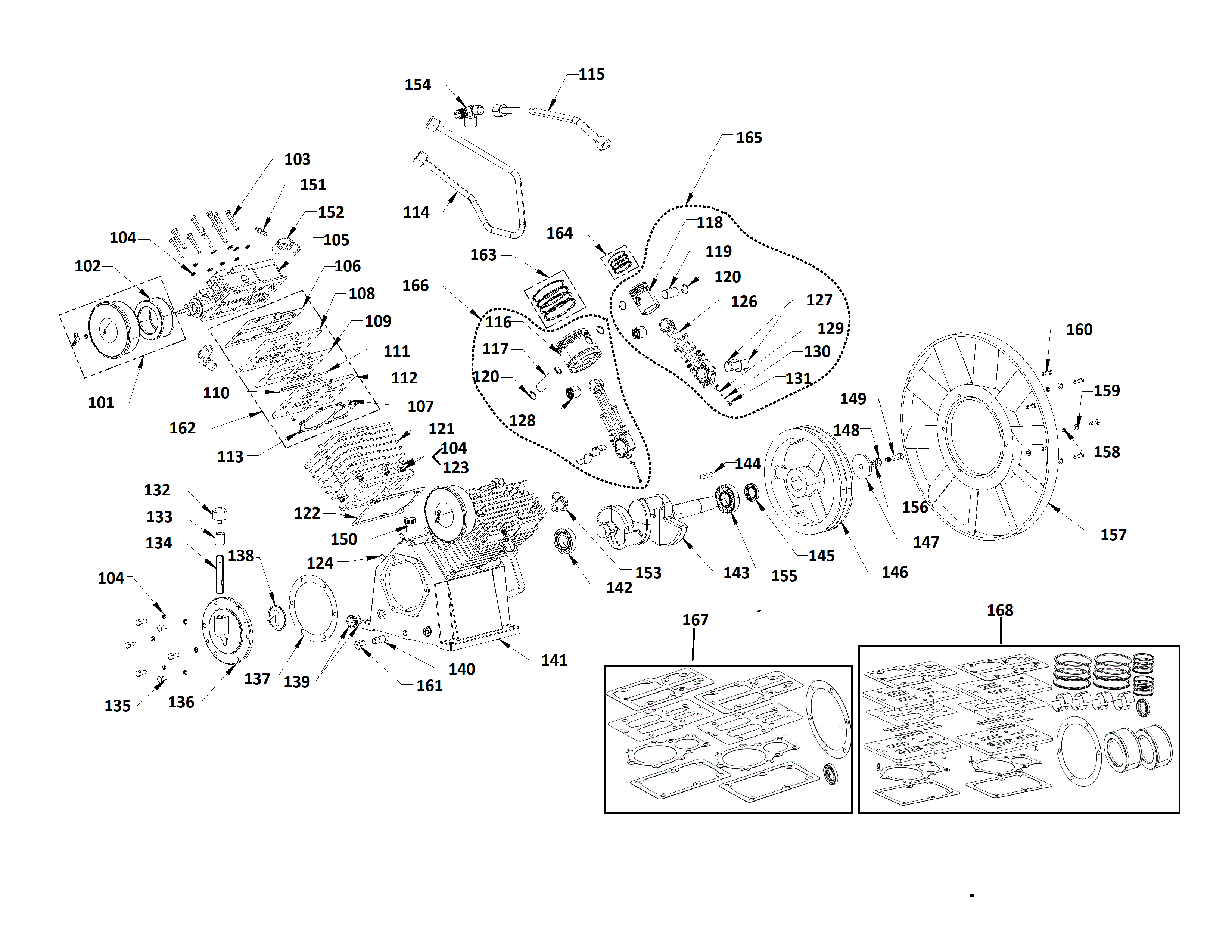

Exploded Diagram, Type 0
GIF
