DXCMLA4708065

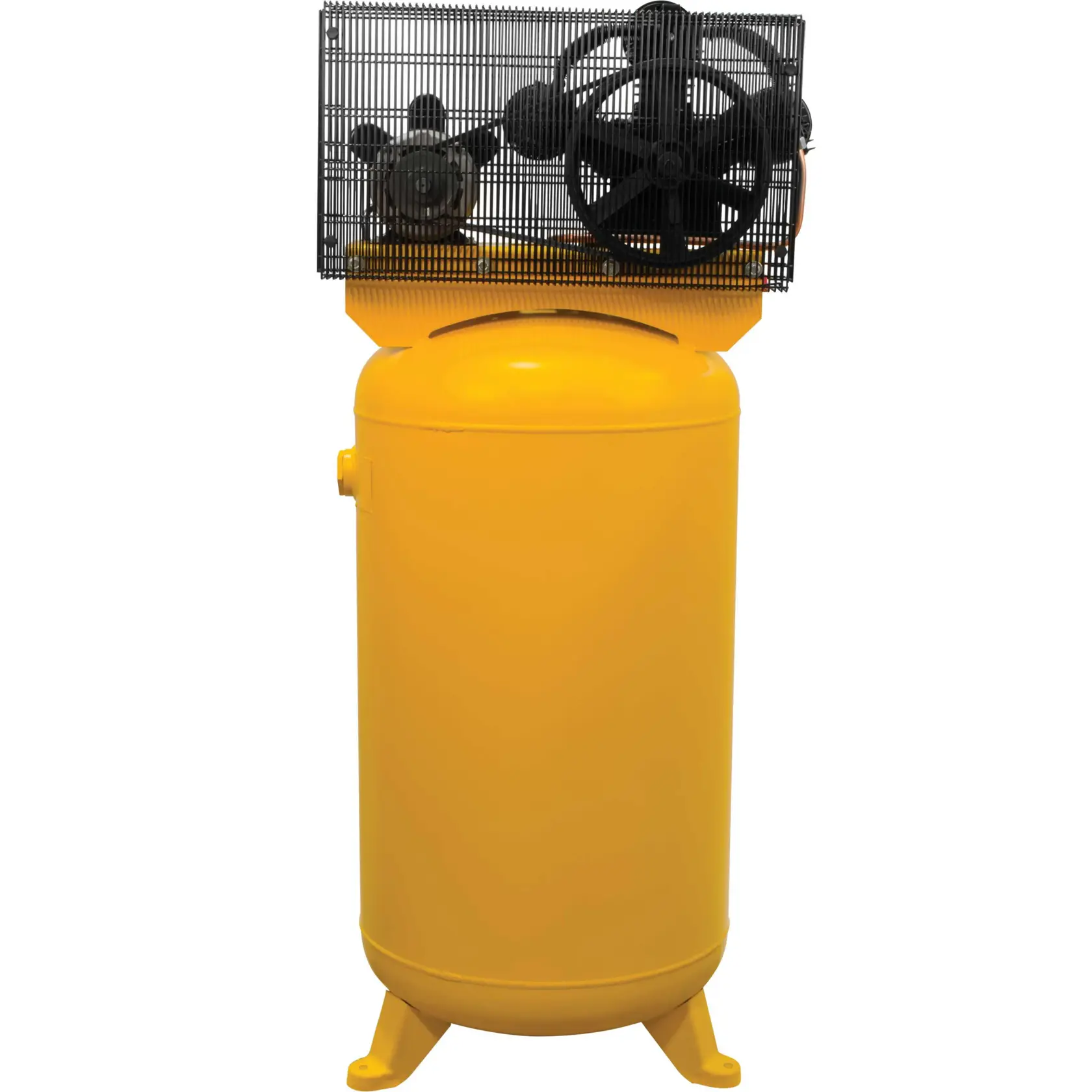

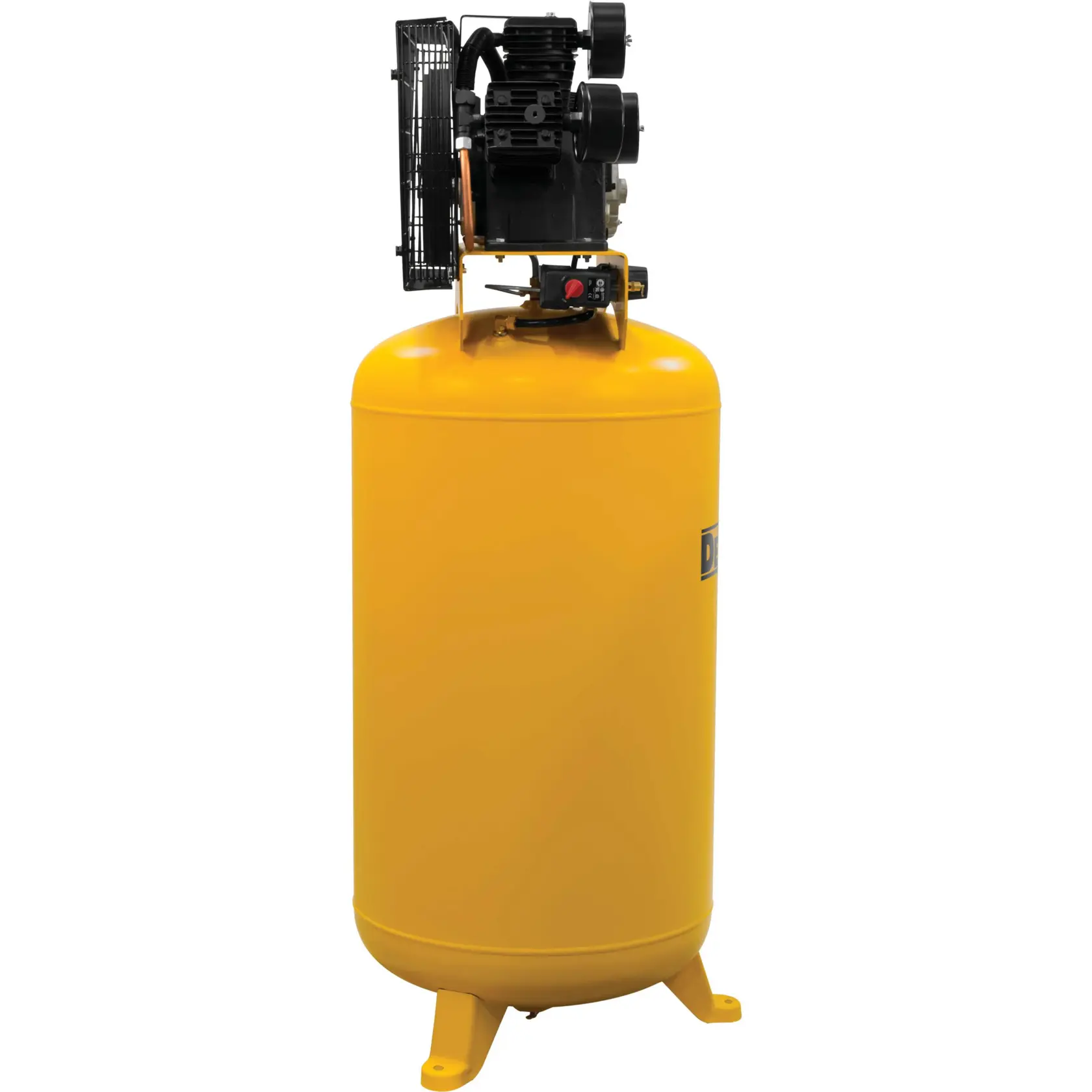

DEWALT® Vertical Stationary Electric Air Compressor (80 gal)
Reviews
Product details
The DEWALT® 80 Gallon Vertical Stationary Electric Air Compressor features a cast iron, 3-cylinder, oil lubricated pump with a 1-piece cast iron crankcase, full cast iron cylinder body, durable Swedish stainless steel Flex leaf valves, oil level sight glass, easily accessible oil fill, 12 in. cast iron balanced flywheel and large intake filter/silencers. A large capacity, 80 gallon ASME air receiver provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc. 155 max PSI provides optimum tool performance.
- 16.1 CFM at 40 PSI and 14 CFM at 90 PSI with 4.7 rhp
- Full metal belt guard
- Integrated control panel includes pressure gauges, airflow regulator, quick connect air outlets and pressure relief valve
- Shipped with synthetic oil for optimum performance and long life
Product Type
Compressor
Cordless or Corded
Corded
Power Source
Electric
CFM
14-cfm
Assembled Product Weight
354-lbs
- (1) DXCMLA4708065
- Missing Warranty Code
Our DEWALT® Customer Service team is available 24 hours a day, 7 days a week. Contact us via chat, form, or phone.
Customer SupportDownloads and manuals
Instruction Manual, Type 0
200-2895-E_DXCMLA4708065_VR_11-3-20.pdf
PDF
Instruction Manual, Type 0
200-2895-F_OPERATOR_MANUAL_DXCMLA4708065_VR_8-26-21.pdf
PDF
Instruction Manual, Type 0
200-2895-G_DXCMLA4708065_VR_3-16-22.pdf
PDF

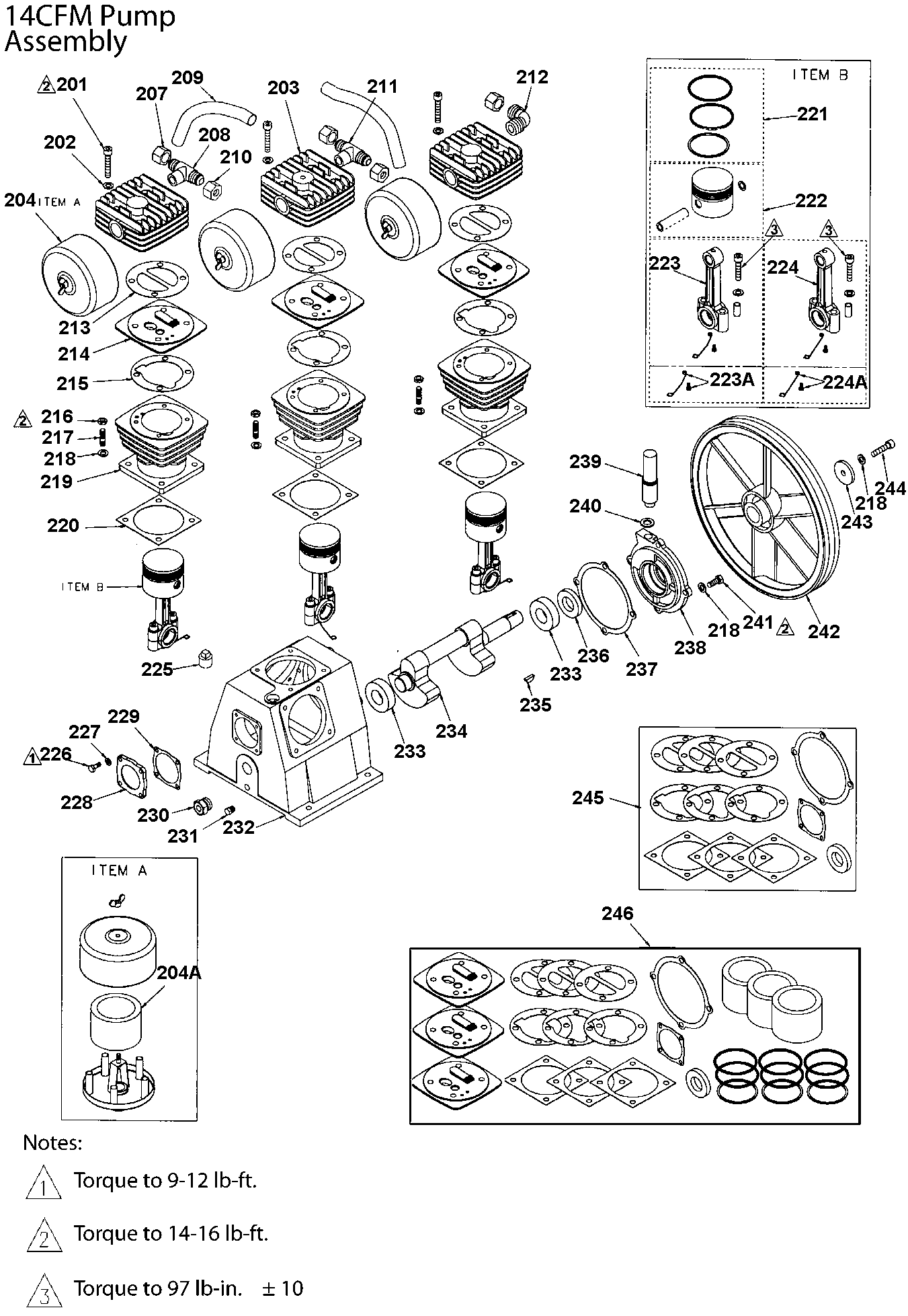

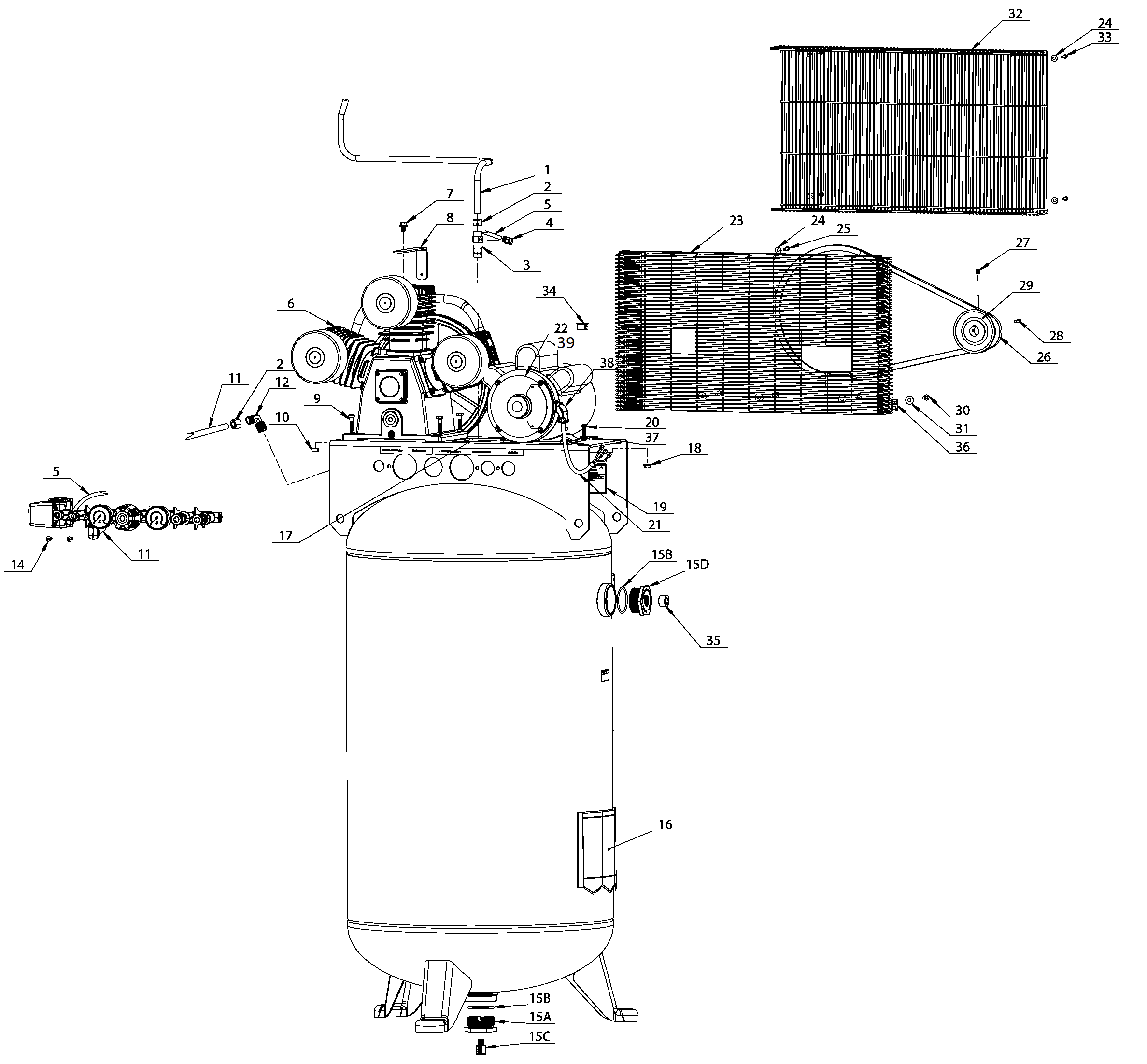

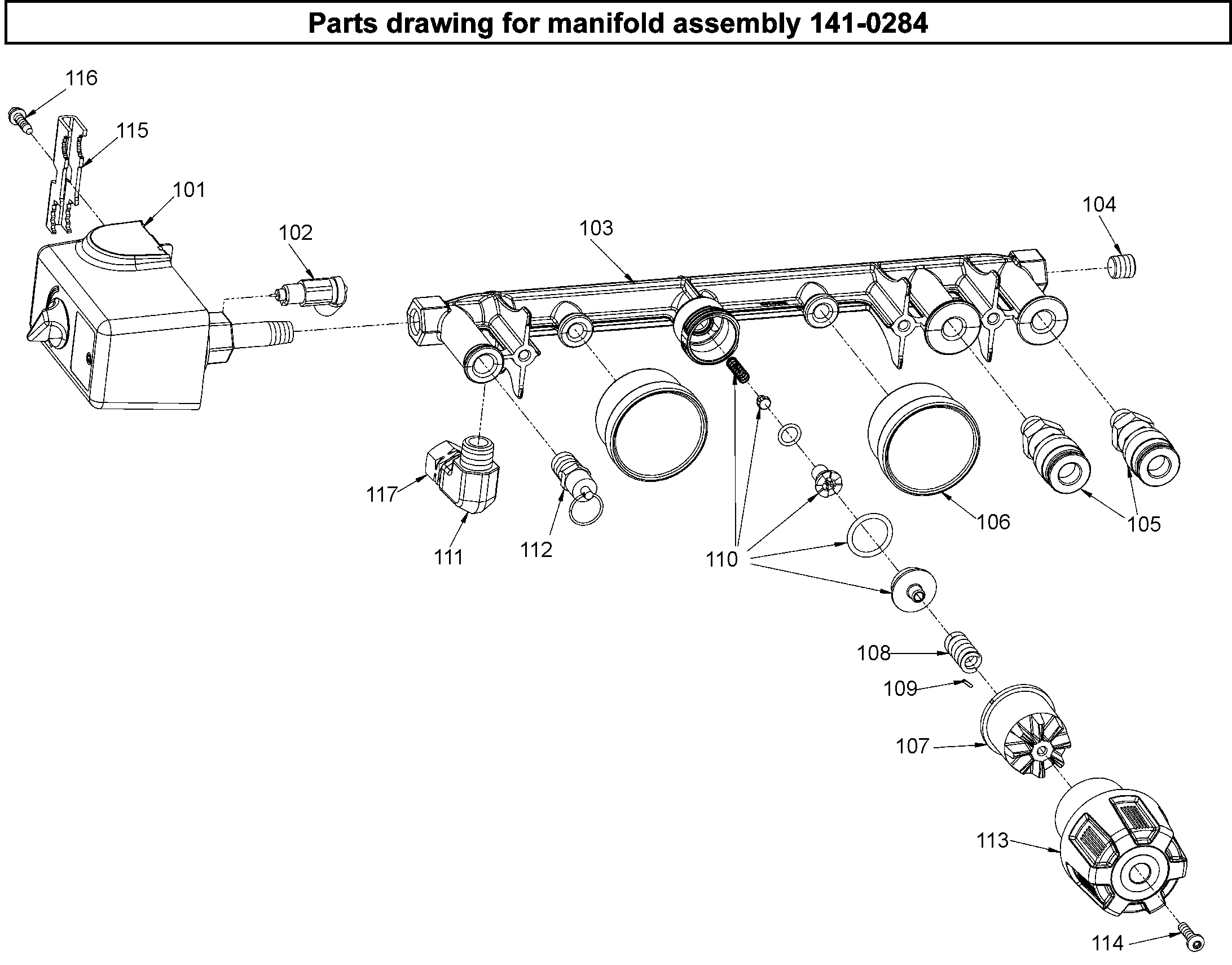

Exploded Diagram, Type 0
GIF
Exploded Diagram, Type 0
GIF
Exploded Diagram, Type 0
GIF
